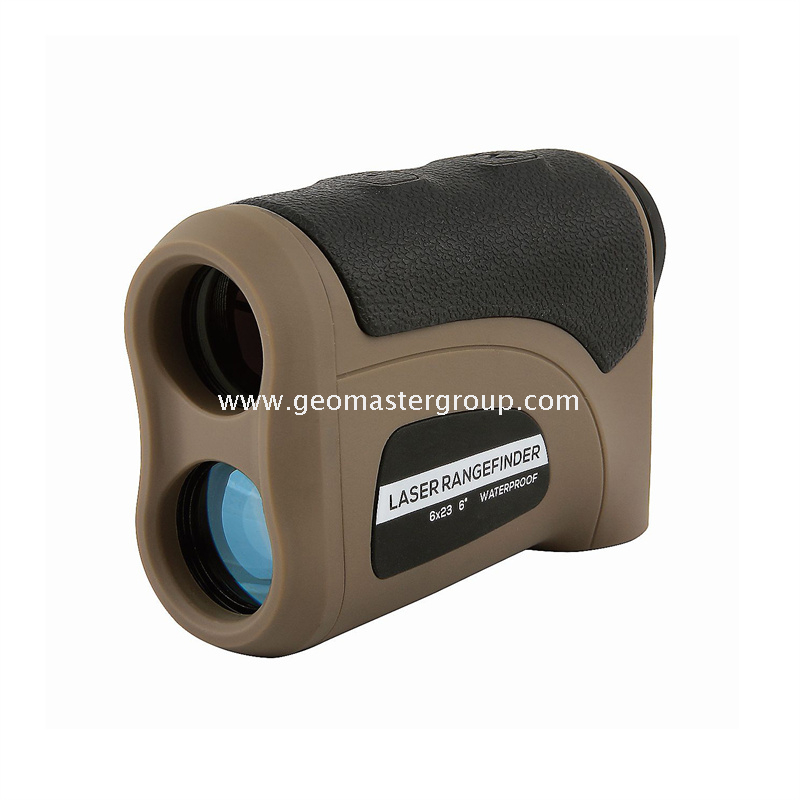

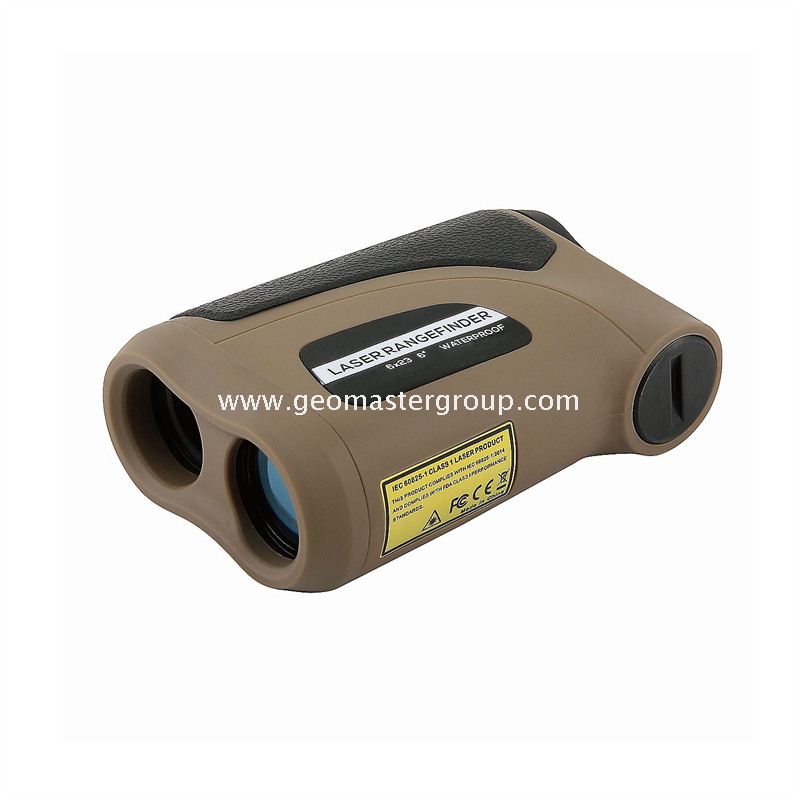

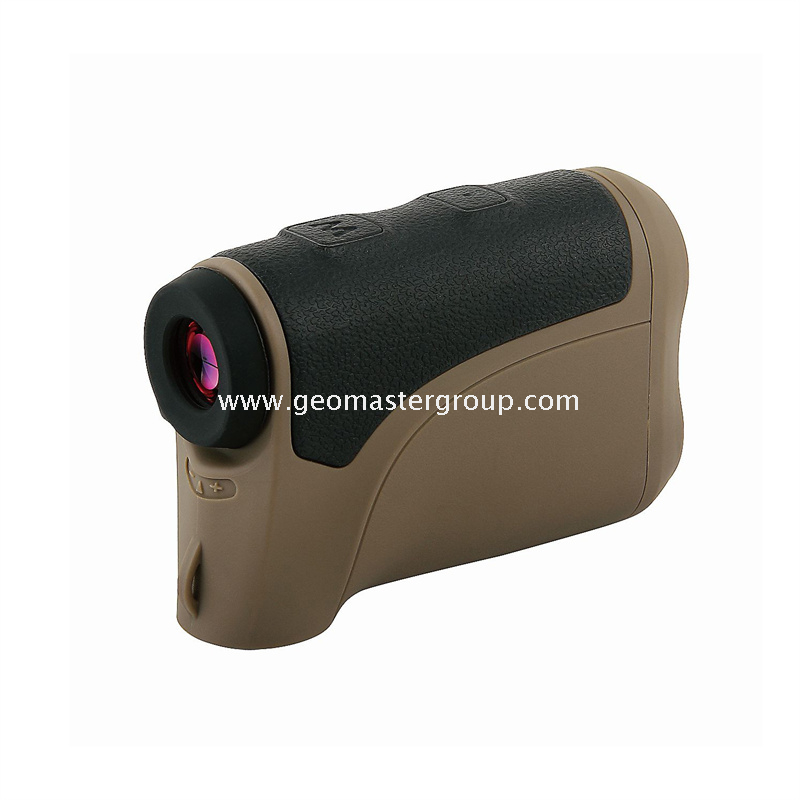

Laser Range Finder

Highlights
Model: LRF-3000A
1.Built-in LCD Laser Range Finder
2.Magnification up to 6x
3.Distance Measuring: 5-3000m(yd); ±0.5m(yd)
4.Angle Measuring(A): ±85º; ±1º
5.Distance,Angle,Height,Golf Scan Mode

Availability:
Quantity:
  • LRF-3000A

  • Geomaster

  • 9015900090

Features
Model: LRF-3000A
1.Widely used for Surveying, Monitoring, Golfing, Hiking, Hunting, Camping, ...
2.Multipurpose measurements: Distance,Angle,Height,Golf Scan Mode
3.High-quality monocular Telescope with multi-layer Coating producing clear Images
4.Long Eye Relief offering comfortable Viewing and Observing
5.Harmless Laser Indicator,low battery indicator and auto power-off

Specifications
Model: LRF-3000A
1.Distance Measuring
1)Range: 5-3000m (or yd)
2)Accuracy(under normal condition): ±0.5m(yd)
3)Resolution: ±0.1m(yd)
4)Time: 0.3-1.5sec
5)Measuring Modes: Horizontal,Vertical,Straight Line

2.Angle Measuring(A)
1)Range: ±85º
2)Accuracy: ±0.3º

3.Telescope
1)Magnification: 6x
2)Objective Aperture: 23mm
3)Exit-pupil Diameter: 16mm
4)Field of View: 6º
5)Display Mode: built-in LCD
6)Focusing Mode: by eyepiece
7)Lens Coating: fully multi-coated and transmissive

4.Laser Source and Power Supply
1)Laser Source: 905nm, Class I
2)Power Supply: CR2,3V, auto power-off after 8s standby
3)Battery Life: continuous operation to 5000 times (25℃)

5.Ambient Conditions
1)Operating Temperature: -10℃~+50℃
2)Water-proof and fog-proof: IP4X

6.Customization Service
Available,1000m,2000m,3000m,4000m!!

Note:
Any updating would be subject to change without prior notice.


Related Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool, Steel Measuring Tape,
Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape,Disto Laser, Disto Measure,
Distometer, Disto Tape, Disto Wheel,Distance Measuring Wheel, Digital Distance Wheel,Nylon-clad Tape, Steel Tape Measure,Stainless Steel Tape Measure, Distance Measure Laser, Laser Measuring Tool, Trumbull Distance Wheel,Roadrunner Measuring Wheel, Keson Distance Measuring Wheel,DigiRoller Measuring Wheel, Lufkin Measuring Wheel,Truemeter Measuring Wheel,Geomaster Measuring Wheel,Kickstand Measuring Wheel,Surveyor Tape,BMI Measure Tape,Nylon-coated Tape,PVC-coated Tape,PVC-clad Tape,Vertex Range Finder,Nikon Range Finder,Bushnell Range Finder,Golf Range Finder

Packing Details
Model: LRF-3000A
1.N.W.: 165g (w/o battery)
2.Dimensions: 103mm×35mm×70mm
3.Qty./CTN: 20pcs
4.G.W./CTN: 7kg
5.Size/CTN: 0.032cbm (60cm×31cm×17cm)
