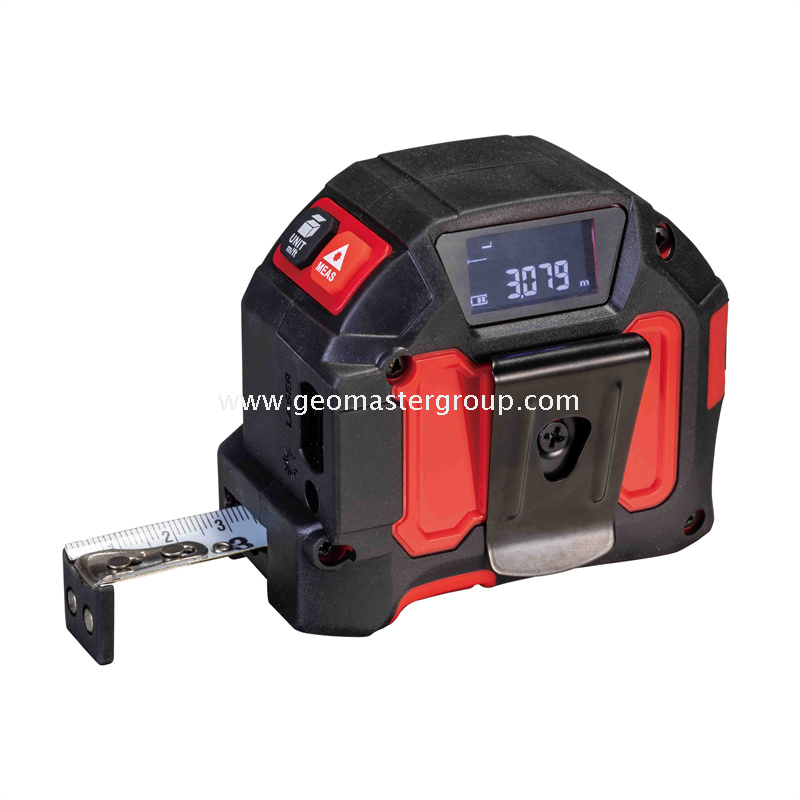

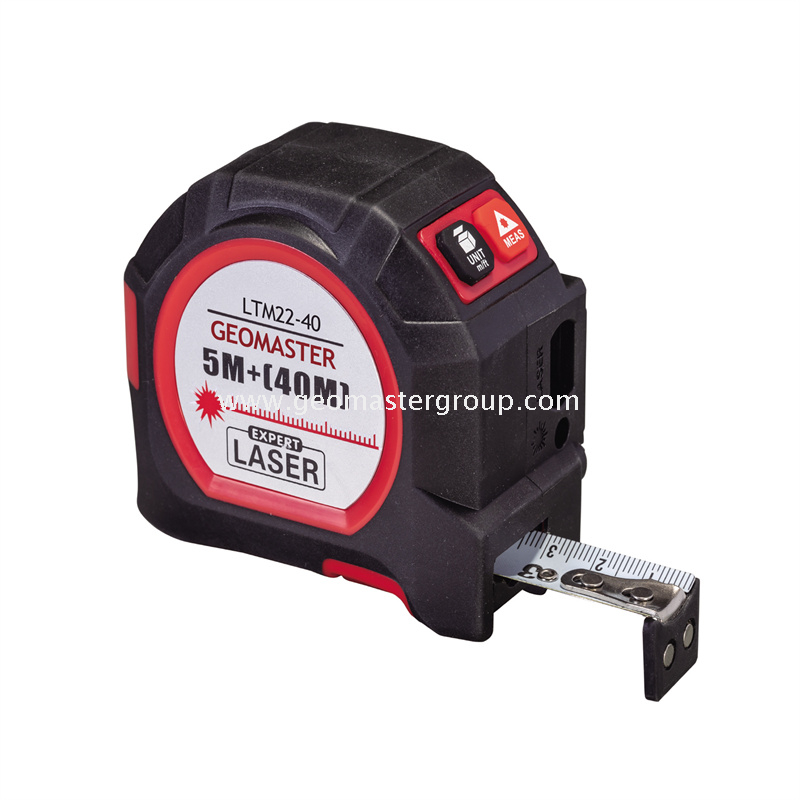

Laser Tape Measure

Model: LTM22-40
1.Steel Tape Measure up to 5m
2.Laser Measure: 40m, ±(3+5×10-5×D)mm
3.Large-format & Back-lit LCD
4.Built-in Lithium Battery
5.Multiple Measuring Functions
6.Data Memory: 2 Measurements
7.Water-proof and dust-proof IP54

  • LTM22-40
  • Geomaster
  • 9015900090

Model: LTM22-40
1.2 in 1 Hand-held Laser Tool
1)2 in 1: Laser Distance Meter (40m)+Steel Measuring Tape (5m)
2)Built-in Lithium Battery, micro-USB Cable Charging
3)Anti-skidding Housing Design (ABS+TPR)
4)Equipped with Belt Clip
5)Power Level Indicator & Back-lit LCD
6)Water-proof and dust-proof IP54

2.Multiple Measuring Functions
1)Distance Measurement
2)Circumference/Area/Volume Measurement
3)Single/Continuous Measurement

Model: LTM22-40
1.Steel Measuring Tape (Non-power driven)
1)Measuring Range: 0.05-5m
2)Metric System (m/mm;1mm)
3)British System (ft/in; 1/32 in)
4)Blade Width: 19mm
5)Blade Thickness:≧0.12mm
6)Nylon-coated Blade, dual colors and double-sided graduations

2.Laser Distance Meter
1)Range (in door): 0.2-40m
2)Accuracy (in door): ±(3+5×10-5×D)mm
3)Measuring Units: m/mm,ft/in,ft,in
4)Minimum Reading: 1mm
5)Measuring Time: 7 times per second

3.Laser Source,LCD and Memory
1)Laser Diode,Class II, 630-670nm, <1mw
2)Laser auto-off: after 30secs
3)LCD: 2 Lines; 26.5mm´20mm´3mm
4)Data Memory: 2 measurements, the current and the previous

4.Power Supply
1)Built-in Lithium rechargeable Battery

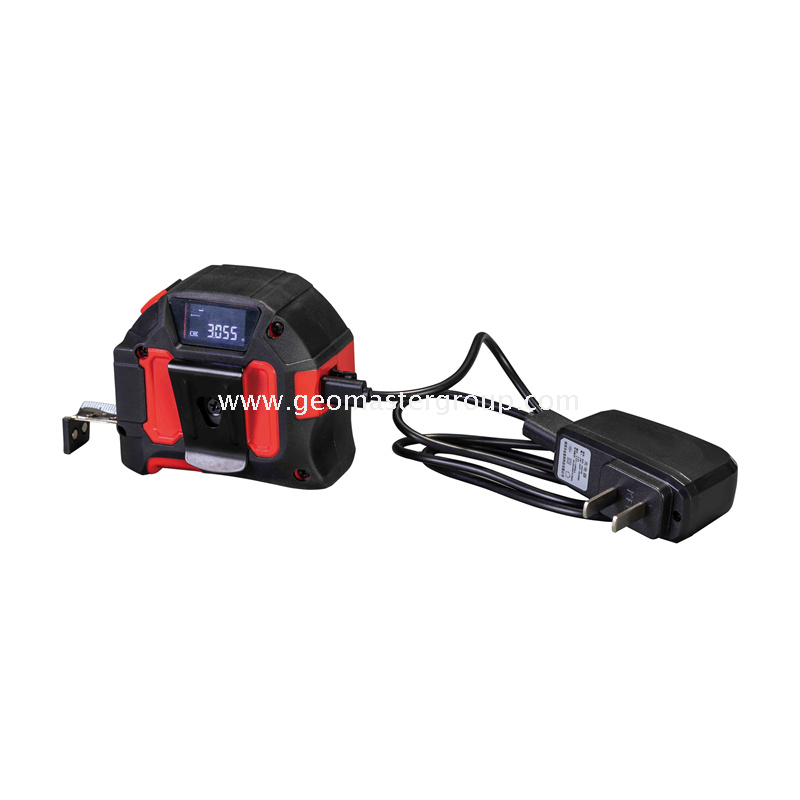

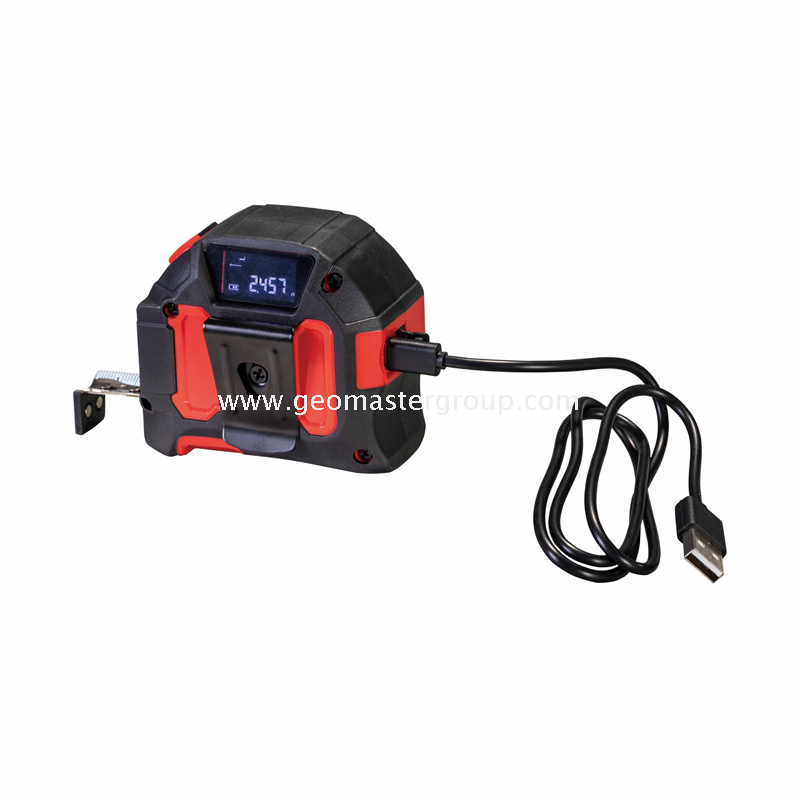

2)micro-USB style Charger: Input: 100-240v, 50/60HZ,0.2A; Output: DC5.0v,1000mA
3)Battery Life: up to 5000 Measurements
4)Auto Power-off: after 180secs

5.Ambient Temperature
1)Operating Temperature: 0°C ~40°C
2)Storage Temperature: 10°C ~60°C

Note: Any updating would be subject to change without prior notice.

Related Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool, Steel Measuring Tape,
Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape,Disto Laser, Disto Measure,
Distometer, Disto Tape, Disto Wheel,Distance Measuring Wheel, Digital Distance Wheel,Nylon-clad Tape, Steel Tape Measure,Stainless Steel Tape Measure, Distance Measure Laser, Laser Measuring Tool, Trumbull Distance Wheel,Roadrunner Measuring Wheel, Keson Distance Measuring Wheel,DigiRoller Measuring Wheel, Lufkin Measuring Wheel,Truemeter Measuring Wheel, Geomaster Measuring Wheel,Kickstand Measuring Wheel,Surveyor Tape,BMI Measure Tape,Nylon-coated Tape,PVC-coated Tape,PVC-clad Tape,Vertex Range Finder,Nikon Range Finder,Bushnell Range Finder,Golf Range Finder

Packing Details
Model: LTM22-40
1.Unit Dimensions: 82mm×47mm×72mm
2.N.W.: 275-285g
3.Qty./CTN: 40pcs
4.G.W./CTN: 15kg
5.Size/CTN: 0.056cbm (39cm×33cm×45cm)
