Laser Tape Measure

Highlights
Model: LTM-60
1.Steel Tape Measure up to 5m
2.Laser Measure up 60m (±2mm)
3.Large-format LCD
4.Built-in Lithium Battery
5.Multiple Measuring Functions

Quantity:
  • LTM-60
  • Geomaster
  • 9015900090

Specifications
Model: LTM-60
1.Steel Measuring Tape (non-digital,non power-driven)
1)Measuring Range: 5m
2)Accuracy: ±2mm
3)Metric System (m/mm;1mm)
4)British System (ft/in; 1/32 in)
5)Blade Width: 19mm; Blade Thickness:1.25mm

2.Laser Distance Meter
1)Range (in door): 0.03-60m (without Reflector Target)
2)Accuracy (in door): ±1.0mm
3)Measuring Units: m/mm or ft/in,optional

4)Responding Time: 0.3-4 secs

3.Laser Source, LCD and Memory
1)Laser Diode,Class II, 620-670nm, <1mw
2)Laser auto-off: after 15secs

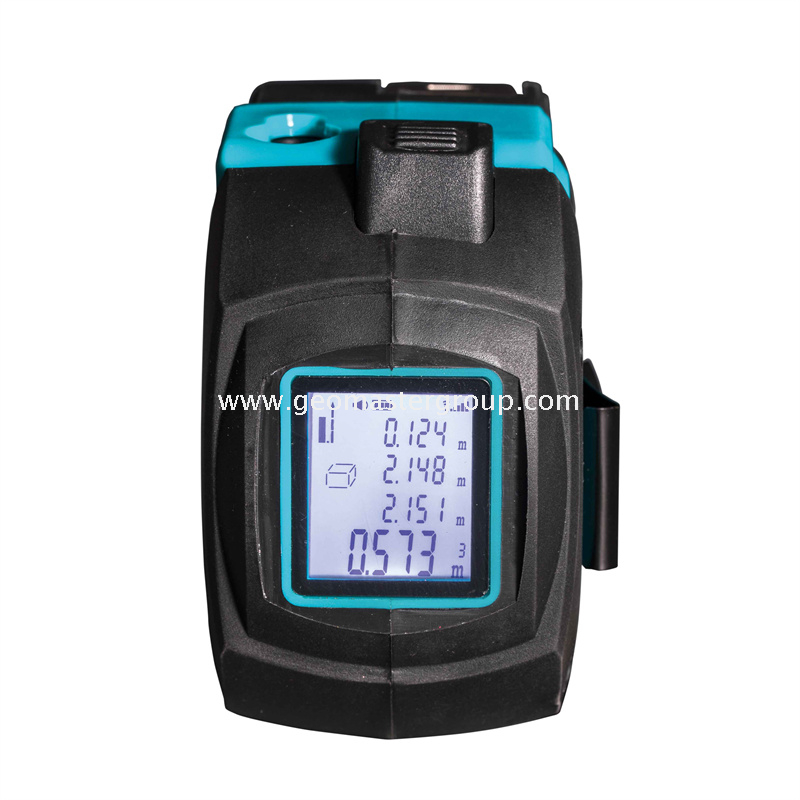

3)Illuminated LCD: Display Capacity: 4 Lines; Size: 26mm´22mm
4)No Data memory function

4.Power Supply
1)Built-in Lithium rechargeable Battery: 3.7V/200mAh
2)Battery Life: up to 5000 Measurements

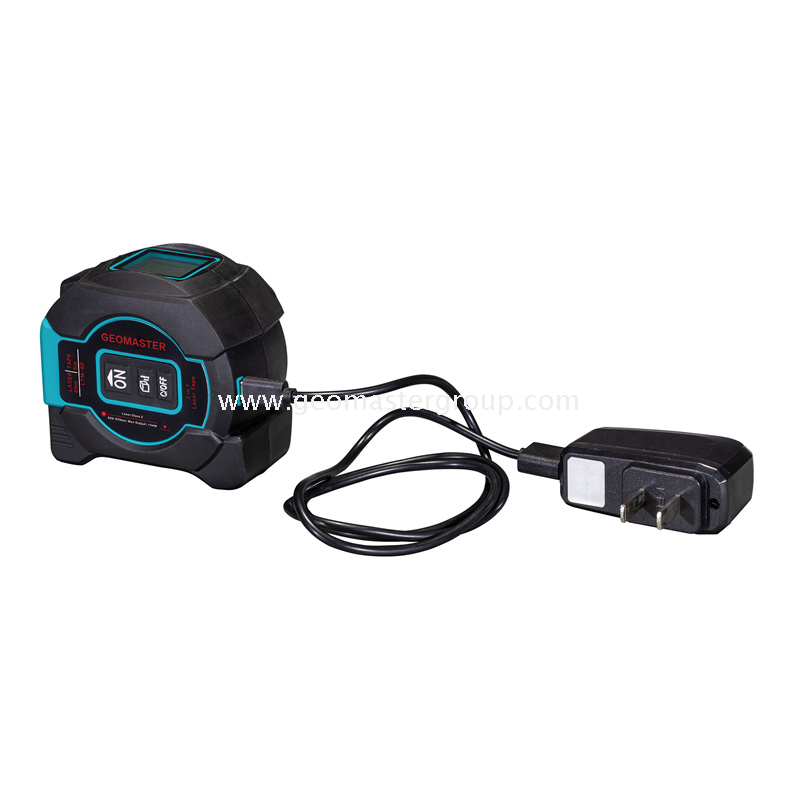

3)Micro-USB charger (5v/500mAh)
4)Auto Power-off: after 45secs

5.Ambient Temperature
1)Operating Temperature: 0°C ~+40°C
2)Storage Temperature: -20°C ~+60°C

Note: Any updating would be subject to change without prior notice.


Alternative Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool,Steel Measuring Tape, Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape, Distance Measuring Wheel, Nylon-clad Tape, Steel Tape Measure, Stainless Steel Tape Measure, Stanley Tool, Distance Measure Laser, Laser Measuring Tool, Disto Laser, Disto Measure, Distometer, Disto Tape, Disto Wheel

Features
Model: LTM-60
1.2 in 1 Hand-held Laser Tool
1)2 in 1: Laser Distance Meter (60m)+Steel Measuring Tape (5m)
2)Multiple Measuring Functions
3)Built-in Lithium Battery, micro-USB charger
4)Anti-skidding Housing design (TPE+ABS+PC)
5)Data clearing/Benchmark switching/Battery Power Indicator
6)Automatic/Manual Power-off/Buzzer prompting

2.Multiple Measuring Functions
1)Distance/Area/Volume measurement
2)Pythagorean measurement
3)Addition and Subtraction measurement
4)Single/Continuous measurement
5)Min/Max measurement


Packing Details
Model: LTM-60
1.Unit Dimensions: 90mm×32mm×13mm
2.N.W.: 150g
3.Qty./CTN: 50pcs
4.G.W./CTN: 13kg
5.Size/CTN: 0.077cbm (65cm×34cm×35cm)
