Highlights
Model: GPR111-5/ABS
1.Geomaster Prism Reflector (GPR)
2.Geomaster Premier Prism Assembly
3.Replacement of original GPR111
4.Prism Offset: 0mm; -34.4mm (Absolute)
5.Prism Accuracy: ≦5"
6.All Polymer Holder, Canister & Target (Integrated)
7.w.Swiss-style quick-release (Snap-on) Press Button
8.Compatible with all Swiss-style Spigots & Stubs
| Quantity: | |
|---|---|
GPR111-5/ABS
Geomaster
90159000
Specifications & Features
Model: GPR111-5/ABS

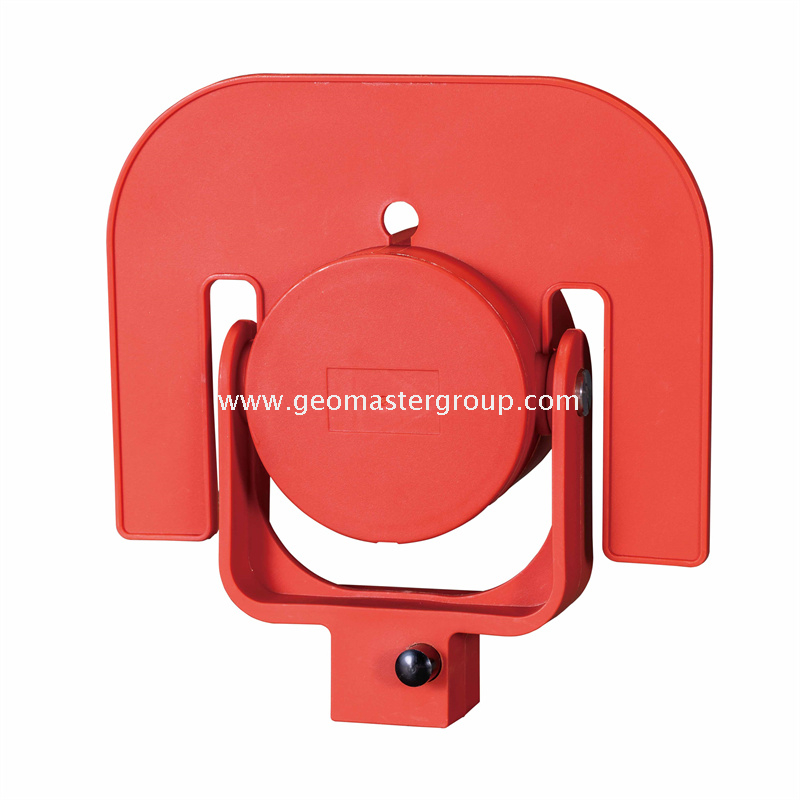

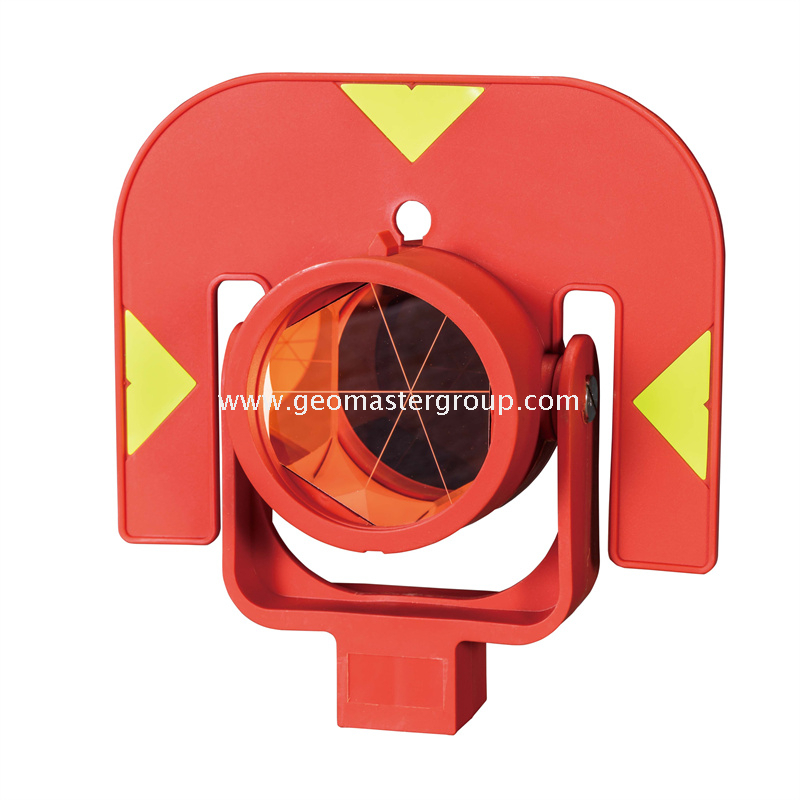

1.Geomaster Premier Prism Assembly and Prism Reflector
2.Replacement of original GPR111,Basic Circular Tilting Prism with Holder and Target Plate
3.Red and all Polymer Holder, Target and Canister
4.Integrated Canister & Target Plate,in one-piece,water-proof
5.Prism Offset: 0mm; -34.4mm (Absolute)
6.Circular Prism Accuracy: ≦5"; ≦3" available
7.Tilting Target Dimensions: 12.2cm x 16cm (4.8" x 6.3")
8.Maximum Range with IR Total Stations: up to 2000-2500m
9.Compatible with all Geomaster Geo-adapters (Swiss-style,M12)
10.Compatible with all Geomaster Prism Poles (Swiss-style Spigot & Stub,M12)
11.Compatible with all Swiss-style Surveying Instruments
12.Packed in soft durable Prism Bag & Case PAB-5 or PAB-6
13.N.W.: 480-485g (excl.carrying bag)
Note: Any updating would be subject to change without prior notice.
