Highlights
Model: CST30-500

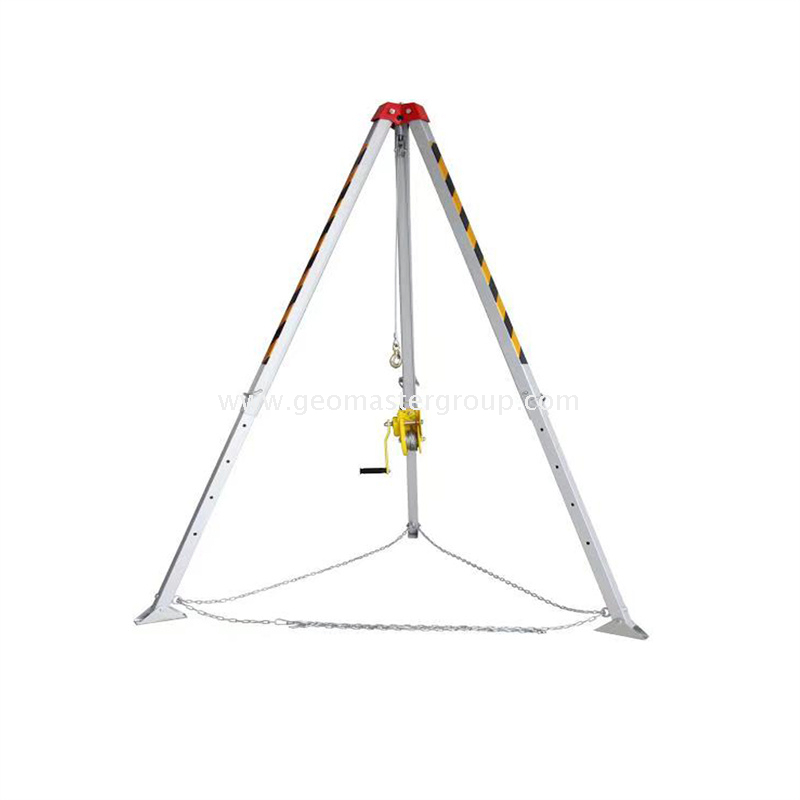

1.Safety Tripod (Confined Space Tripod)
2.Tripod Height up to 2.2m
3.Anti-twist Sling lifting up to 30m
4.Tripod Working Load up to 500kg
5.Self-locking Hand Winch
6.Winch Working Load up to 1800kg
7.Stainless Steel Protection Chains
| Quantity: | |
|---|---|
CST30-500
Geomaster
9031809090
Specifications
Model: CST30-500

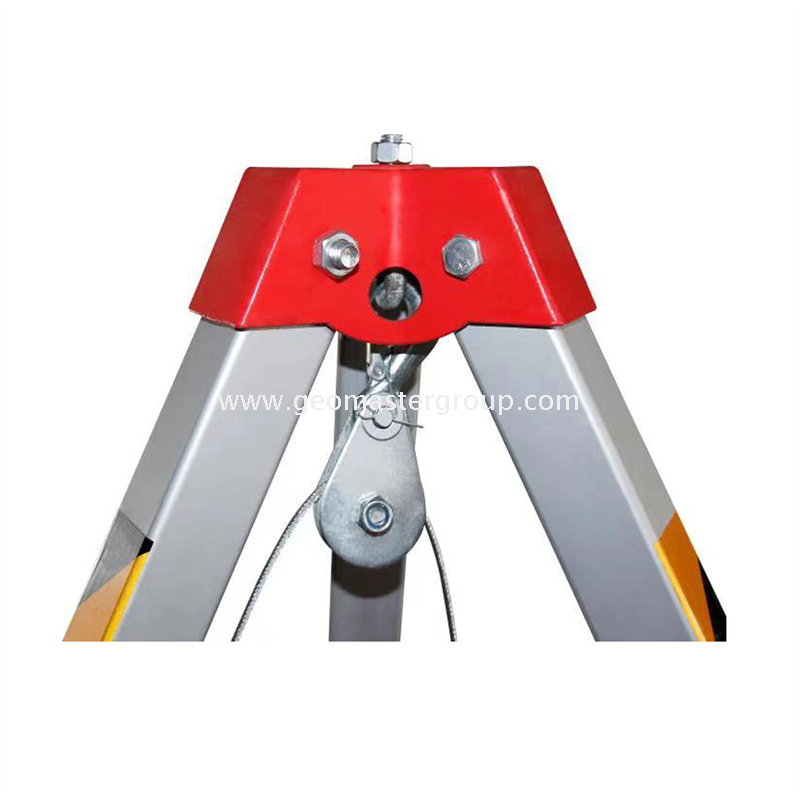

1.Tripod (STD220-500)
1)Anti-twist Lifting Sling: up to 30m
2)Maximum Height (fully extended): 2.20m (7.2ft)
3)Minimum Height (fully retracted): 1.40m (4.6ft)
4)Square Legs: aluminium cast and extruded, up to 3mm thick
5)Max Rated Working Load (Safe Working Load,SWL): 500kg

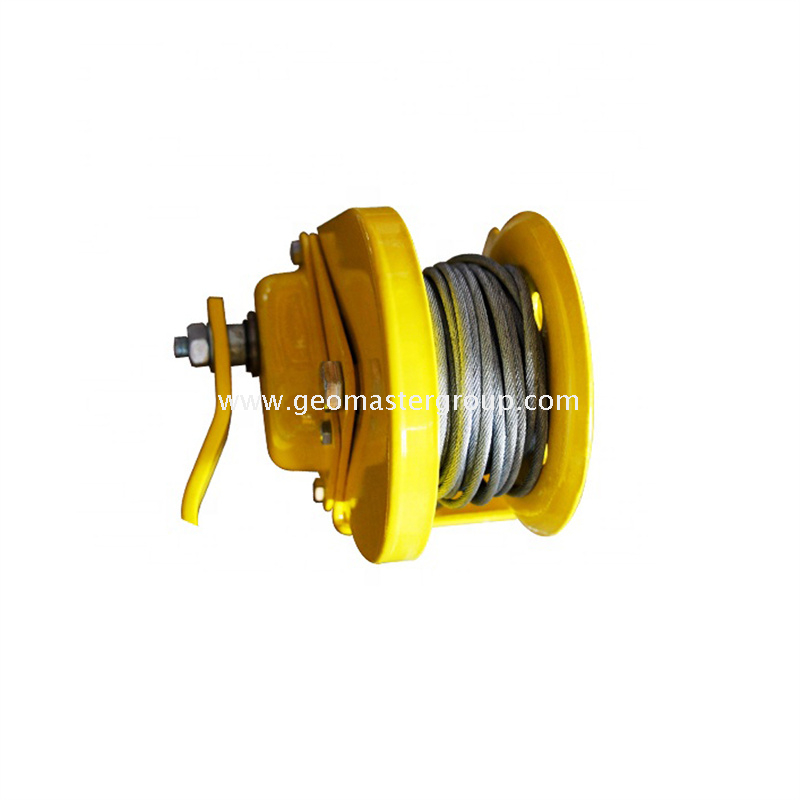

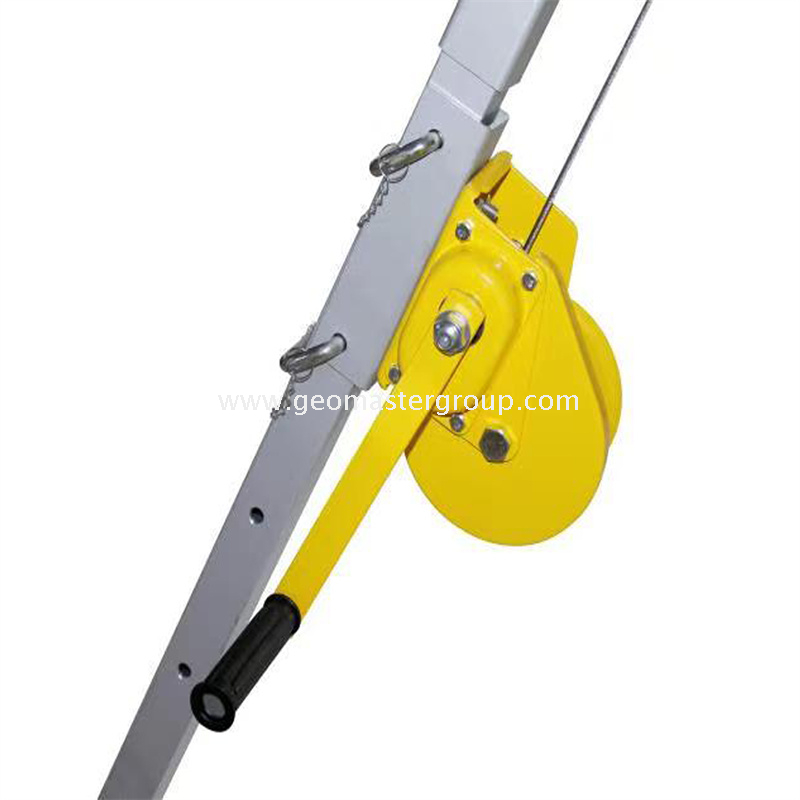

2.Self-locking Hand Winch (SHW-1800)
1)Rated Working Load: 1800kg
2)Lateral Traction: 500kg
3)Longitudinal Tension: 150kg
4)Gear Ratio (Speed Ratio): 8:1
5)Lifting Speed: 6m/1min
6)Hand Crank Force: 200N
7)Max Load of Traction Pulley: ≧2.5kN
8)Galvanized Lifting Cable (Wire,Sling): 5-30m (98ft) × 4mm (Dia.)
Features
Model: CST30-500
1.Specially designed for operating in confined Spaces and providing fall protection from falls from height
2.Tripod made of high-strength, heavy-duty but light-weight Aluminum Alloy
3.Portable, light-weight and one-man operated, easy to set up

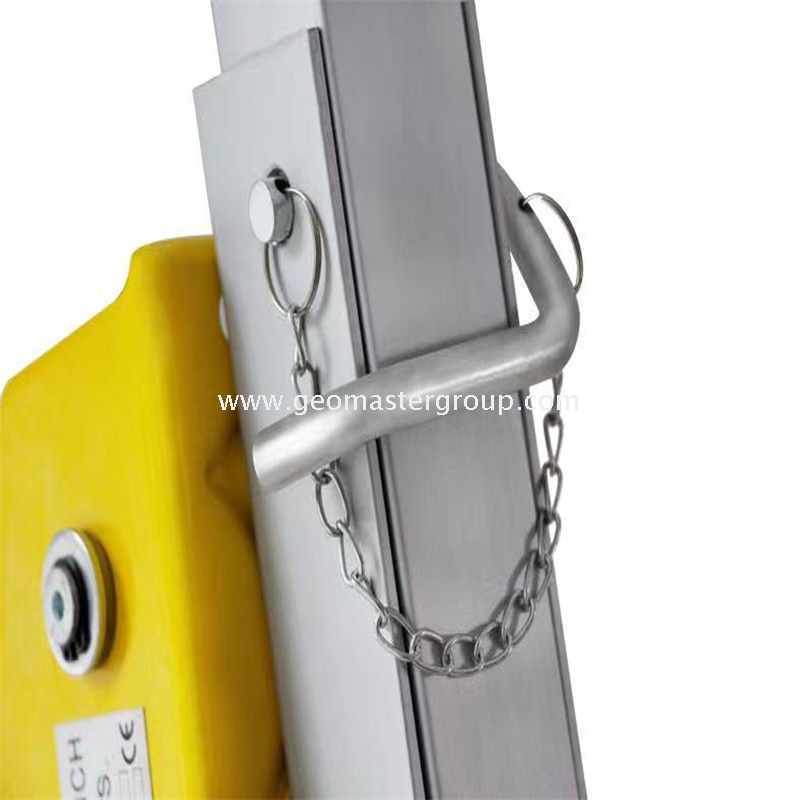

4.Scratch-resistant square Legs freely adjusted and securely locked at desired working heights
5.Anti-twist Wire Rope & Self-locking Winch (Capstan)

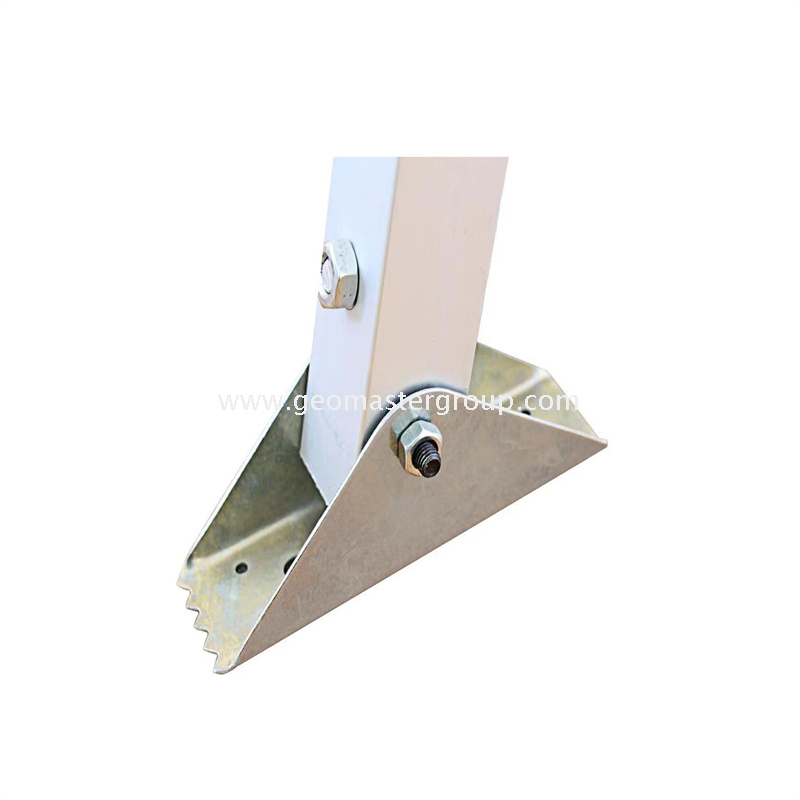

6.Anti-slip Metal Feet suitable for different working surfaces and varying ground conditions
7.Stainless Steel Protection Chains offering extra stability and security
8.All parts corrosion-resistant and crack-proof
9.Operating Temperature: -40°C to +40°C
10.Customization service available: Rescue Sling Length (5-40m),Tripod Working Load (200-500kg)
Note: Any updating would be subject to change without prior notice.
