English
 |
Highlights

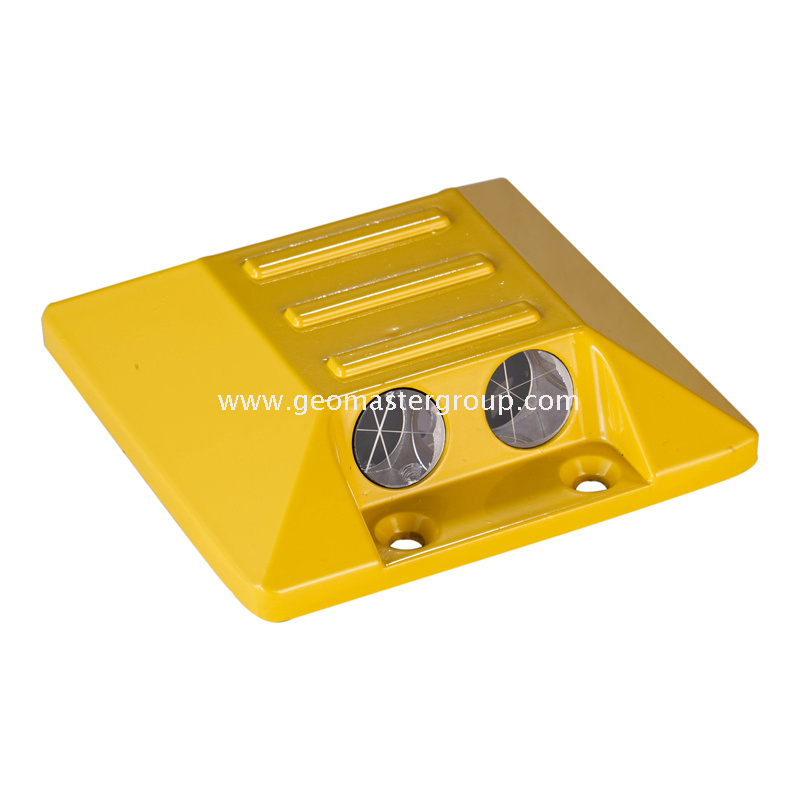

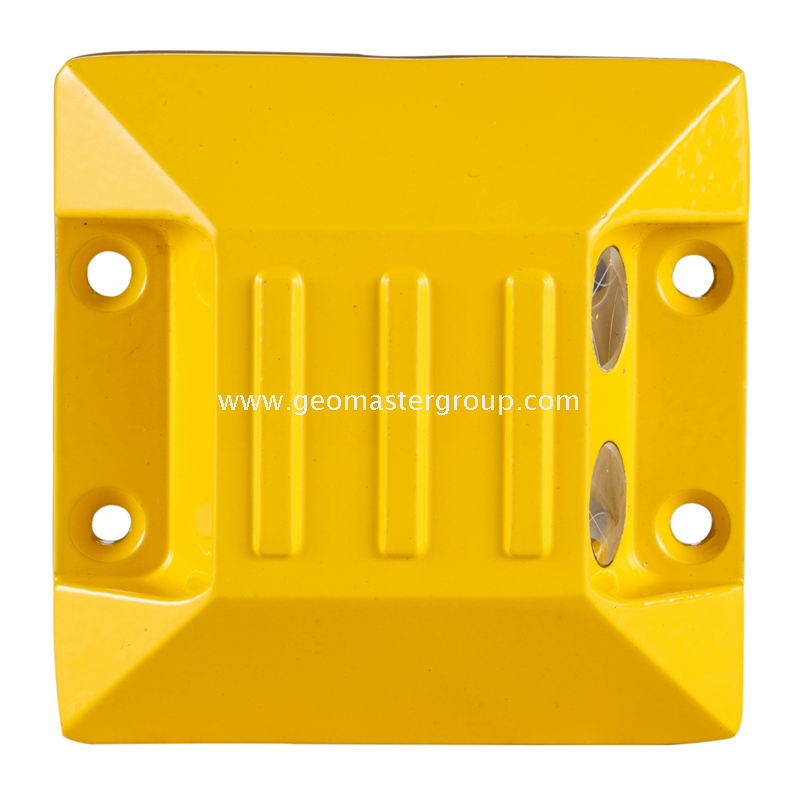

Model: GRP5000-178/5AG-2B/YEL
1.Geomaster Road Prism (GRP5000)
2.Cat’s Eye Prism & Optical Road Stud
3.Mini Prism Aperture 17.8mm
4.Prism Accuracy ≦5" & Silver-coated (AG)
5.Dual Prisms on one Side (2B)
6.Measuring Range up to 800m
7.Die-cast Aluminum Housing,Yellow (YEL)
8.with 4 × M6 Fixing Holes
| Quantity: | |
|---|---|
GRP5000-178/5AG-2B/YEL
Geomaster
9015900090
Specifications
Model: GRP5000-178/5AG-2B/YEL
1.Mini Prism Mini178-5/AG
1)Corner Cube Prism Aperture: 17.8mm
2)Accuracy: ≦5"
3)Vertical Inclination: 20º
4)Central Height: 13.5mm
5)Precision-ground Optical Glass K9
6)Silver-coated (AG)
7)Prism Qty: 2pcs on one Side
8)Measuring Range: up to 800m (under normal condition)
2.Cast Aluminum Housing CAH-100/YEL
1)Body Dimensions: 100mm×100mm×23mm
2)Color: highly-visible Corrosion-resistant Yellow (YEL)
3)Fixing Holes: 4 × M6; countersunk: M12
4)Flexible fixing methods: Bolts, Dowels, Expansion Screws, Nails or Glue (Adhesive)
Features
Model: GRP5000-178/5AG-2B/YEL
1.Specially designed for monitoring on the ground (roads, streets,highways,subways...)
2.Accuracy available: ≦3" ,≦5", ≦8"
3.Silver-coated (AG) and Copper-coated (CU) available
4.Housing Colors available: Bright Yellow (YEL), Silver (SIL)
5.Customization service available
Note: Any updating would be subject to change without prior notice.
