Highlights
Model: CTS16-1580/46
1.Al.Tripod: HS-SJ16F2-OR
1)Lock Style: Wing Nut
2)Height: 96-158cm (37.8-62.2")
2.Al.Staff: ATS4-6/F5-B6
1)4 meter (13ft), 6 sections
2)Graduation:Front: E; Back: 1mm
3)Circular Bubble and Carrying Bag
| Quantity: | |
|---|---|
CTS16-1580/46
Geomaster
90159000
Specifications

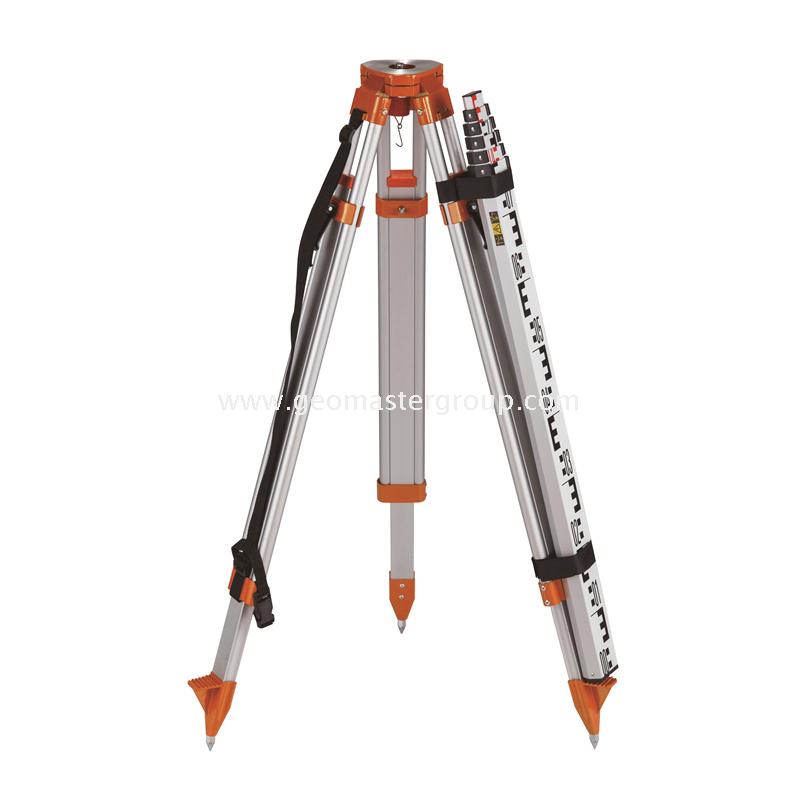

Model: CTS16-1580/46
1)Consisting of light-duty Aluminum Tripod HS-SJ16F2-OR and Aluminum Telescopic Staff ATS4-6/F5-B6.
2)Equivalent to and replacement of Johnson Level Universal Tripod & Grade Rod Kit

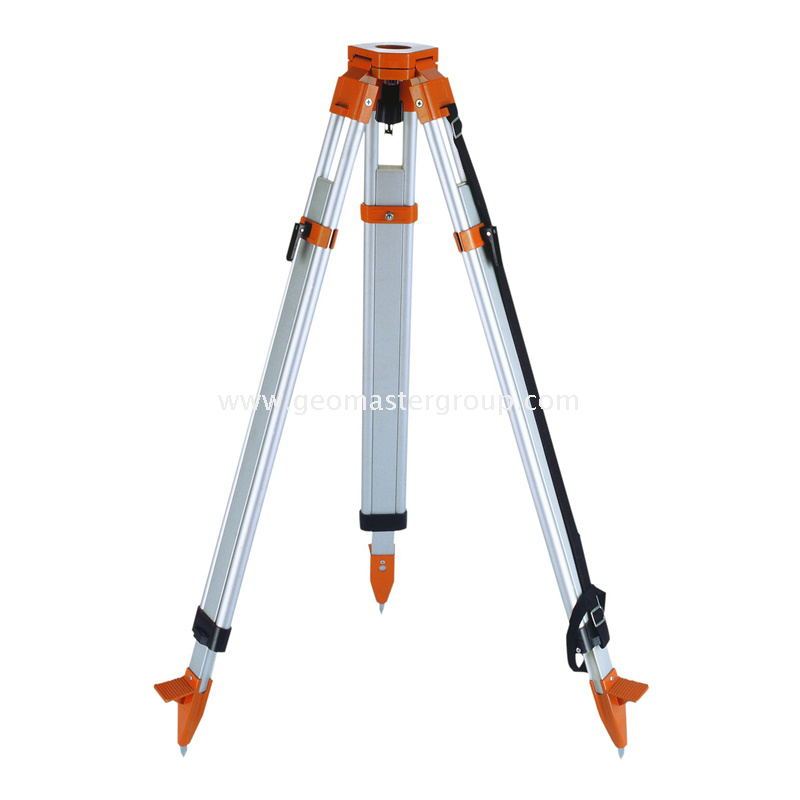

1.Aluminum Tripod: HS-SJ16F2-OR

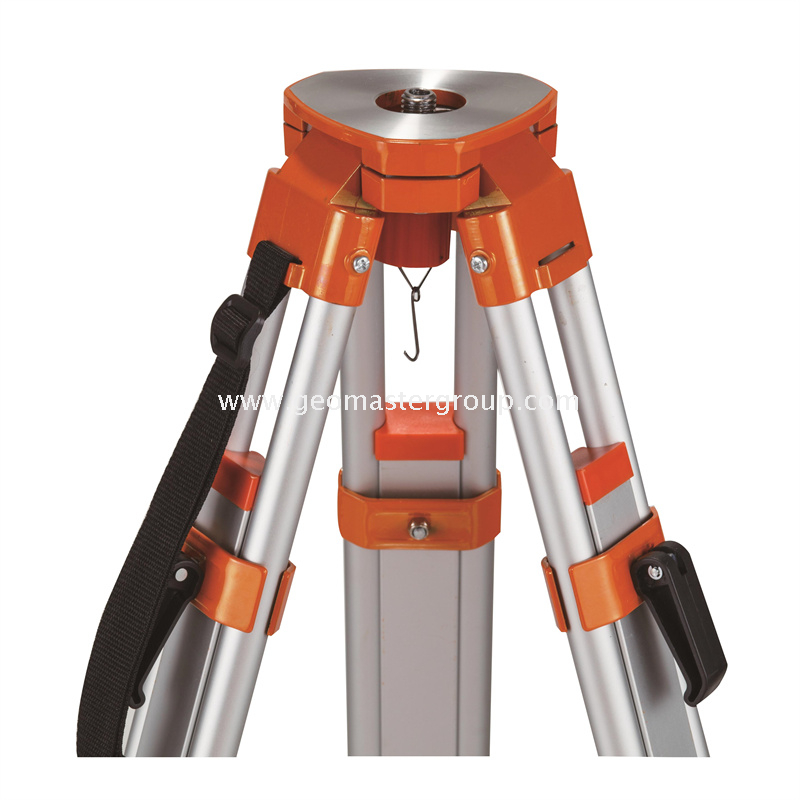

1)Head Type: Triangular Flat (F)
2)Lock Style: Wing Nut (Twist Lock, Screw Lock)
3)Head Size: 124mm (OD)
4)Head Bore: 40mm (ID)
5)Min. Height: 96cm (37.8")
6)Max. Height: 158cm (62.2")
7)Connecting Screw Thread: 5/8"

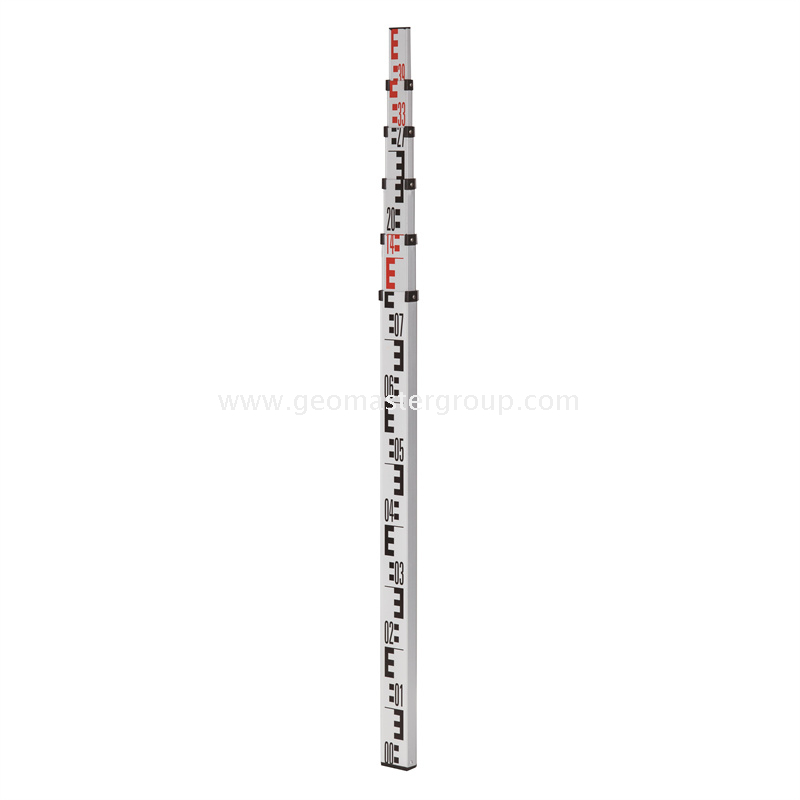

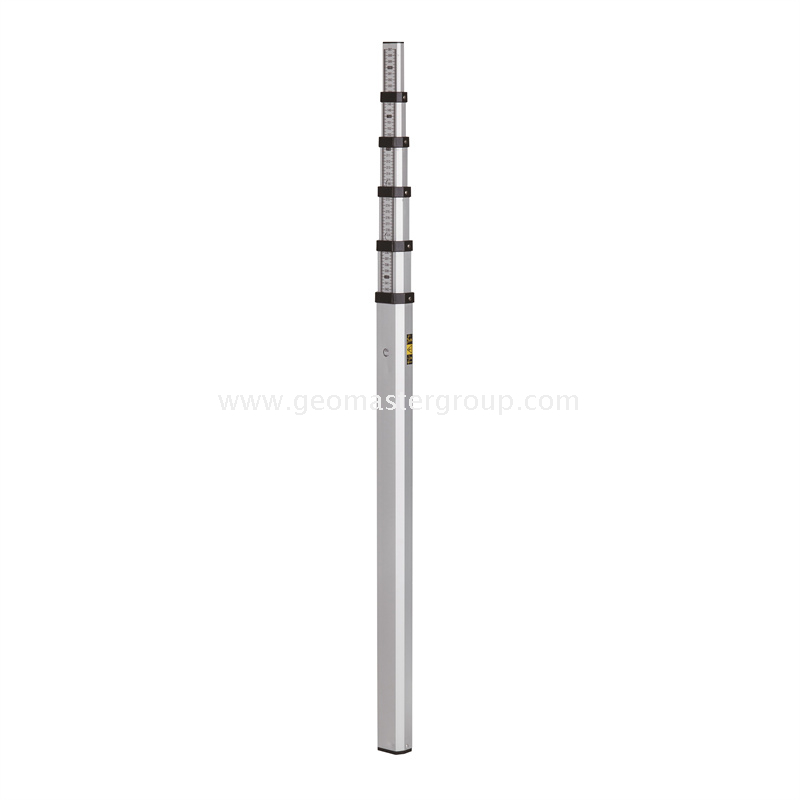

2.Aluminum Telescopic Staff: ATS4-6/F5-B6
1)4 meter (13ft), 6 sections
2)Graduation (Reading): F5-B6 (Front: E; Back: 1mm)
3)Accuracy: ±3mm/Full Length; ±0.5mm/m
4)White powder-coated Tubes
5)With Circular Bubble (20´/2mm) and Carrying Bag
Features
For HS-SJ16F2-OR
1.Light-duty Flat-headed aluminum tripod ideal for light-weight Surveying Instruments
2.Round telescoping legs allowing for setup at desired heights
3.Strong wing-nut locking mechanism for long secure holding and stable supporting
4.Metal pointed tip-toe for hard, slippery, soft, wet and rugged surfaces
5.Universal 5/8" Thread for mounting most light-weight surveying and construction instruments
6.Robust poly-webbing Shoulder Strap for easy carrying and transport
7.Optional Colors for metal parts: Black (BK), OR (Orange)
8.Tripod Floor Mount SST14-600 series for option
For ATS4-6/F5-B6
1.Circular Bubble (20´/2mm) for easy and fast leveling

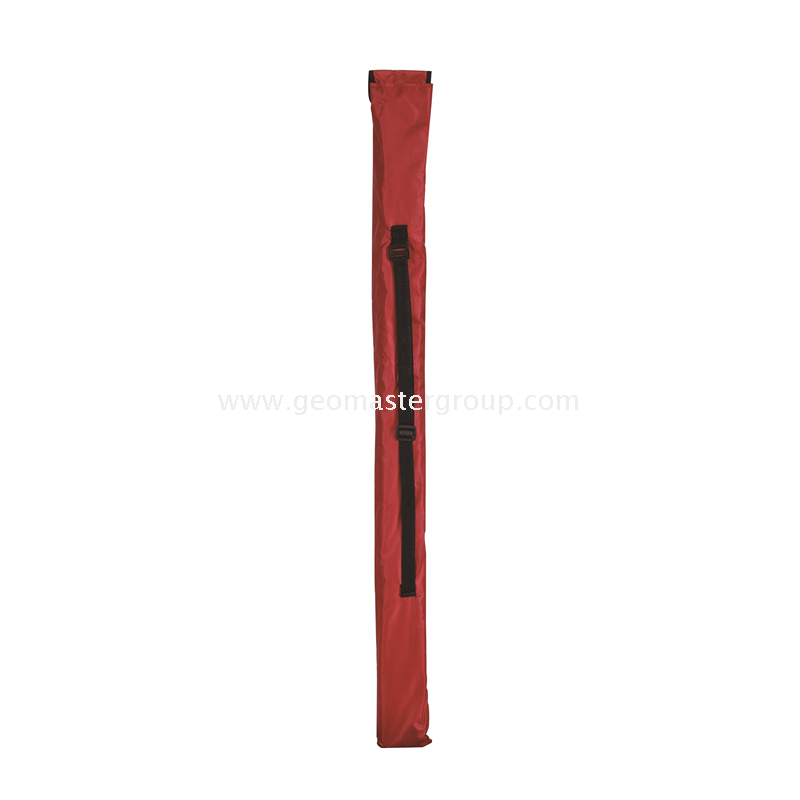

2.Strong Carrying Bag for convenient carrying and transport
3.More Graduations (Reading) for option. Please refer to “Graduation Chart” of “Leveling Rods/Staffs”.
Note: Any updating would be subject to change without prior notice!
