Lithium Stick Battery

Highlights
Model: BL10000
1.Replacement of Trimble Power Stick
2.Stick-style Lithium chargeable Battery
3.Charger
AC Input: 100-240v, 50/60HZ,0.8A
4.Charger
Output: DC12.6v, 2000mA
5.Battery Output: DC11.1v, 10A
6.PTC/TNC Multi Protections
7.For GPS Receivers (Leica,Sokkia,Topcon,Trimble...)

Quantity:
  • BL10000
  • Geomaster
  • 9015900090

Specifications
Model: BL10000

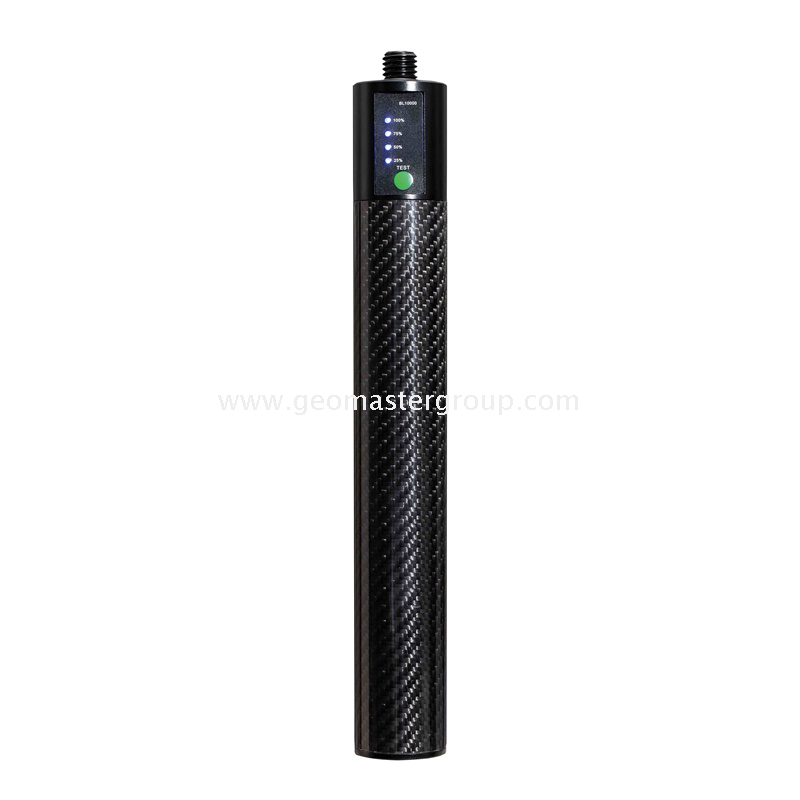

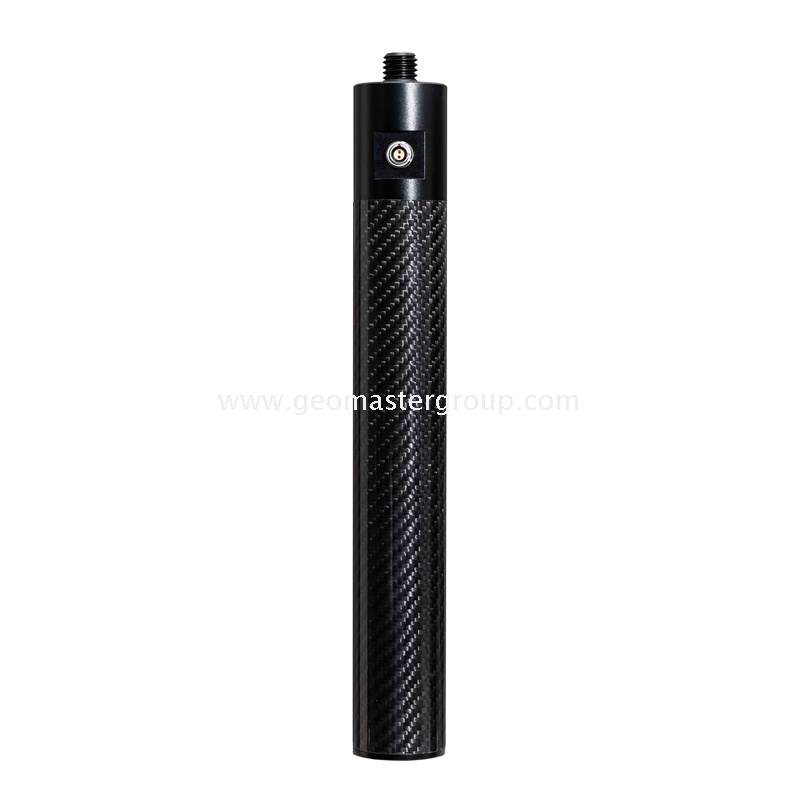

1.Stick-style Battery
1)Battery Type: Lithium-ion, rechargeable
2)Stick Color: Black
3)PTC/TNC multi-protections (over-charging, over-heat, short circuit)
4)Compatible with most GPS/GNSS receivers like Leica, Nikon, Sokkia, Spectra, Topcon,Trimble, depending
on the types of Power Cables
5)Battery Output: DC11.1v,10Ah
6)Battery Working Time: approx.36-48 hours
7)Stick Dimensions: 300mm (H) × 42mm (Dia.)
8)N.W.: 690g

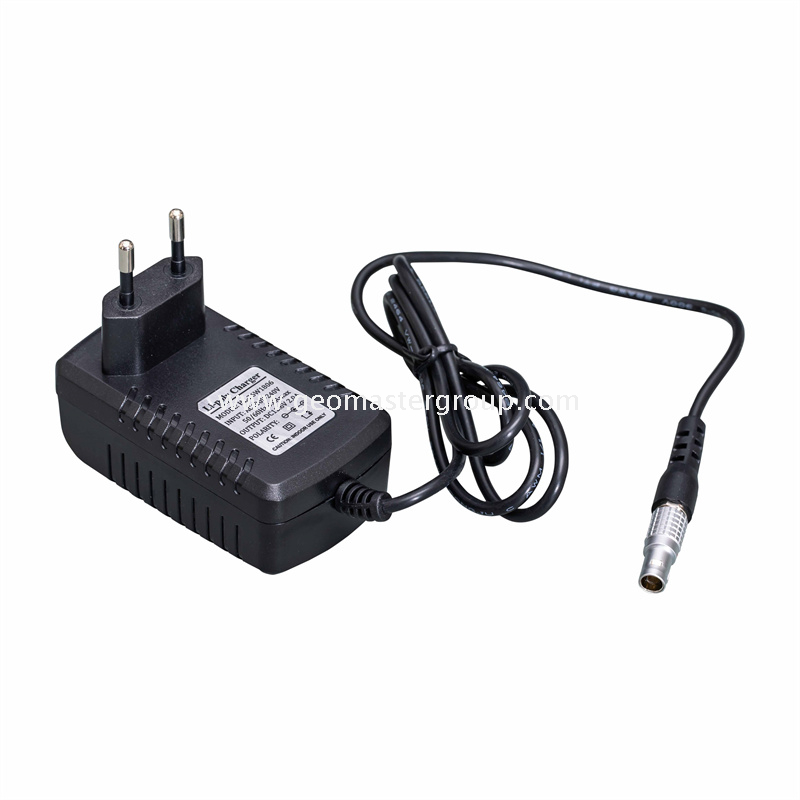

2.Special Charger (Power Supply)
Model: HL-26W186 (CL-15000)
1)Input: AC100-240v, 50/60HZ, 0.8A (max)
2)Output: DC12.6v, 2000mA
3)Charging Time: 3.5-4 hours
4)Charger Plugs: European Plug, British Plug or American Plug
5)Charger Cable: 110-115cm; N.W.:110-115g

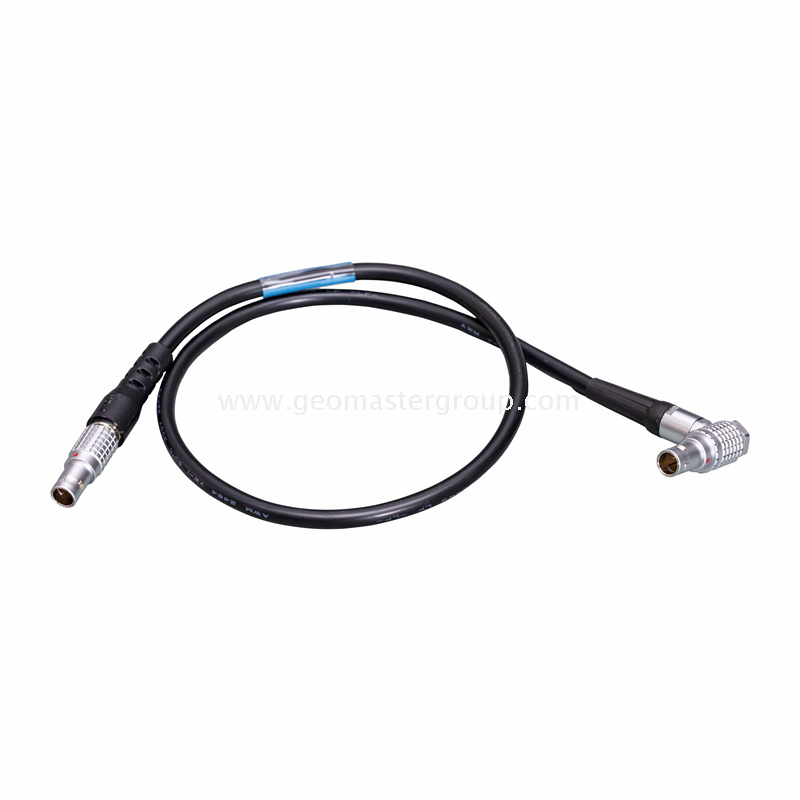

6)Power Cable (from Battery to GPS Receiver): approx. 0.50-55cm; N.W.:40-45g
7)Power Cables available: Leica type, Nikon type, Sokkia type, Spectra type, Topcon type,Trimble type, Geomax type, etc


Note: Any updating would be subject to change without prior notice.


Alternative Names
Dual Charger,Dual Battery Charger,Geomax Battery,Geomax Charger,GPS Battery,GPS Charger,Leica Battery,Leica Charger,Lithium Battery, Lithium Charger,
Nikon Battery,Nikon Charger,NiMH Battery,NiMH Charger,Pentax Battery,Pentax Charger, Sokkia Battery,Sokkia Charger,Spectra Battery,Spectra Charger,
Surveying Accessories,Surveying Battery,Surveying Charger,Surveying Equipment,Surveying Instrument,Surveying Lithium Battery,Surveying Lithium Charger,
Surveying NiMH Battery,Surveying NiMH Charger,Topcon Battery,Topcon Charger,Trimble Battery,Trimble Charger, Stick Battery, Power Pole, Li-ion Battery


Features
Model: BL10000
1.Compatible with most GPS/GNSS receivers like Leica, Nikon, Sokkia, Spectra, Topcon, Trimble
2.Carbon fiber Power Stick with built-in high capacity chargeable Li-ion battery
3.With four-level LED Battery Indicator (25%,50%,75%,100%)
4.Multiple Protections (over-charging, over-heat and short-circuit)
5.Equipped with Universal Charger and Power Cable (from Stick Battery to GPS Receiver)
6.Power Stick Top equipped with 5/8"×11 male thread compatible with all present GPS receivers
7.Power Stick Bottom equipped with 5/8"×11 female thread to be mounted on most surveying accessories with such as Prism Adapters, Prism Poles, GPS Adapters, GPS Poles,etc.

Packing Details
Model: BL10000
The complete package includes 1pc Stick Battery, 1pc Charger and 1pc Power Cable (depending on GPS Receiver)
1.N.W.: 720g (the whole Pack)
2.Qty/CTN: TBD
3.G.W./CTN: TBD
4.Size/CTN: TBD
