Highlights
Model: DQL-8
1.Universal Pocket Compass
2.Measuring Azimuth,Bearing,Distance,Slope...
3.For Positioning,Surveying,Mining,Mapping...
4.Peep-sighting System
5.Inclinometer w.Vernier

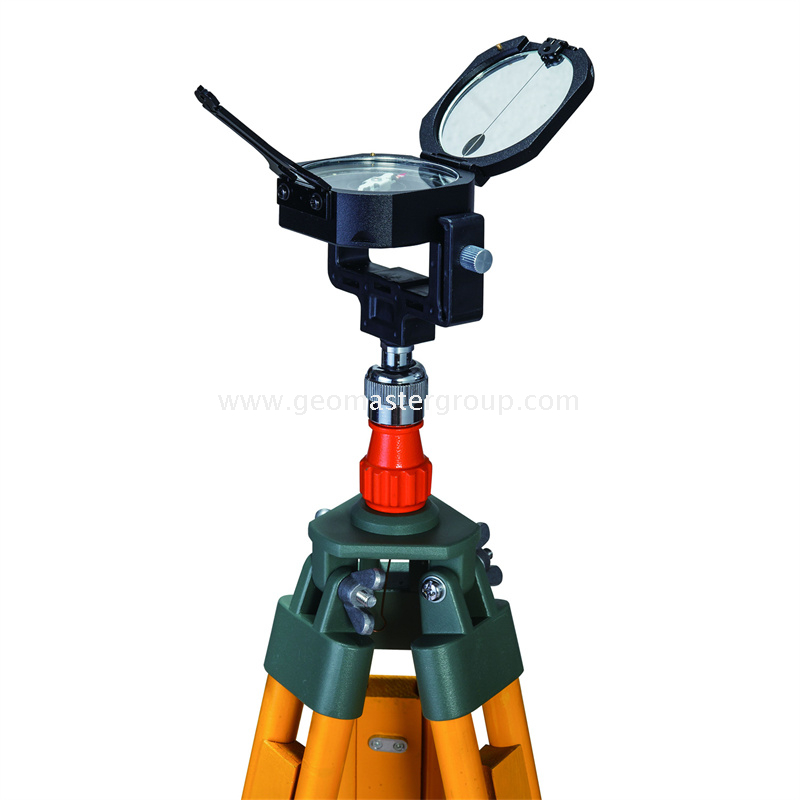

6.Al.Tripod Compass Cradle a/v
| Quantity: | |
|---|---|
DQL-8
Geomaster
90140000
Features and Specifications

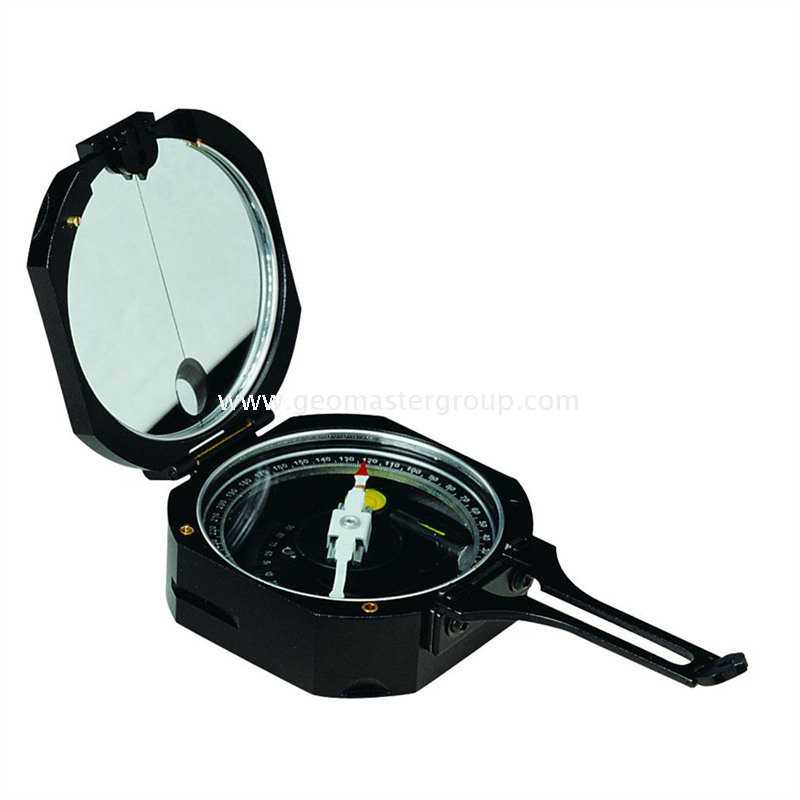

Model: DQL-8
Suitable for Military Training,Mining,Camping,Hiking,Mapping,Positioning,Surveying,etc; measuring Azimuth,Bearing,Distance,Slope...
1.Sighting System
Large peep sight attached to the Housing; small peep sight attached to the Cover

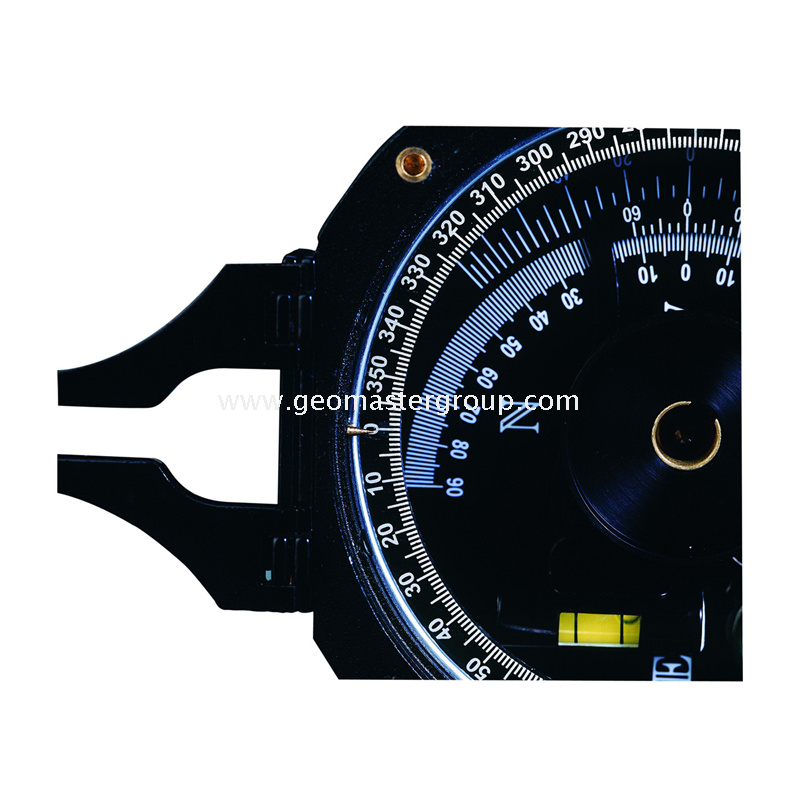

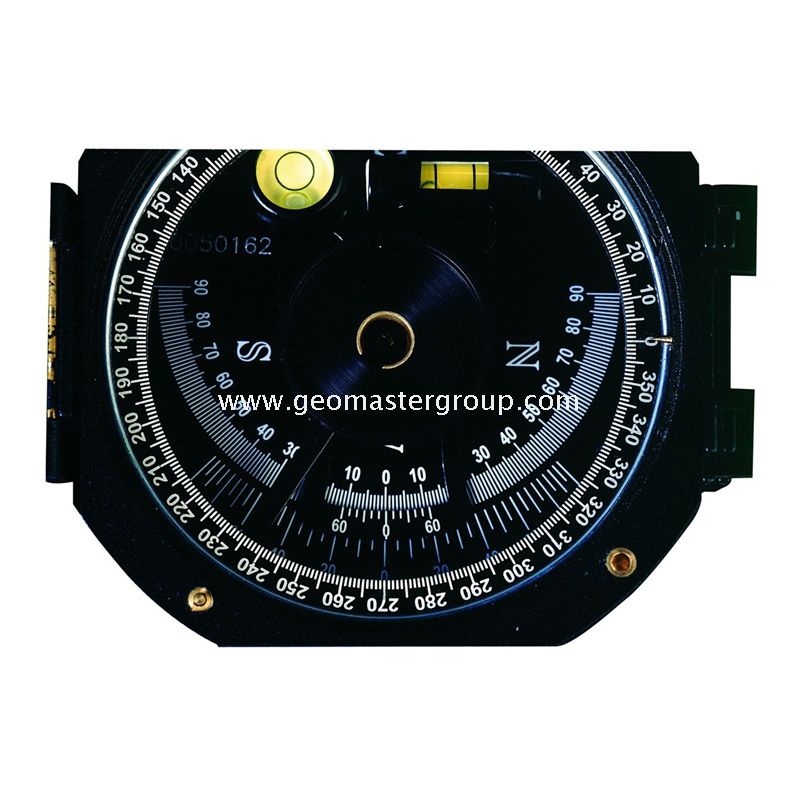

2.Outer Circle
1)Range: 0-360º; Min Graduation: 1º; Estimated Accuracy: ±0.5°
2)Diameter: Outer: 65.5mm; Inner: 55+0.2mm
3.Inclinometer (with Vernier)
Allowing for fine inclination measurement
1)Vertical Range: ± 90° or 0-100%
2)Vertical Accuracy (Direct reading): ±10¢
3)Estimated reading: ± ½°
4.Induction-dampened Needle
Damping Time: ≦15"; Red needle to S, white needle to N; Needle locked when out of use
5.Zero PIN (Magnetic Declination Adjuster)
Allowing for magnetic deviation adjustment

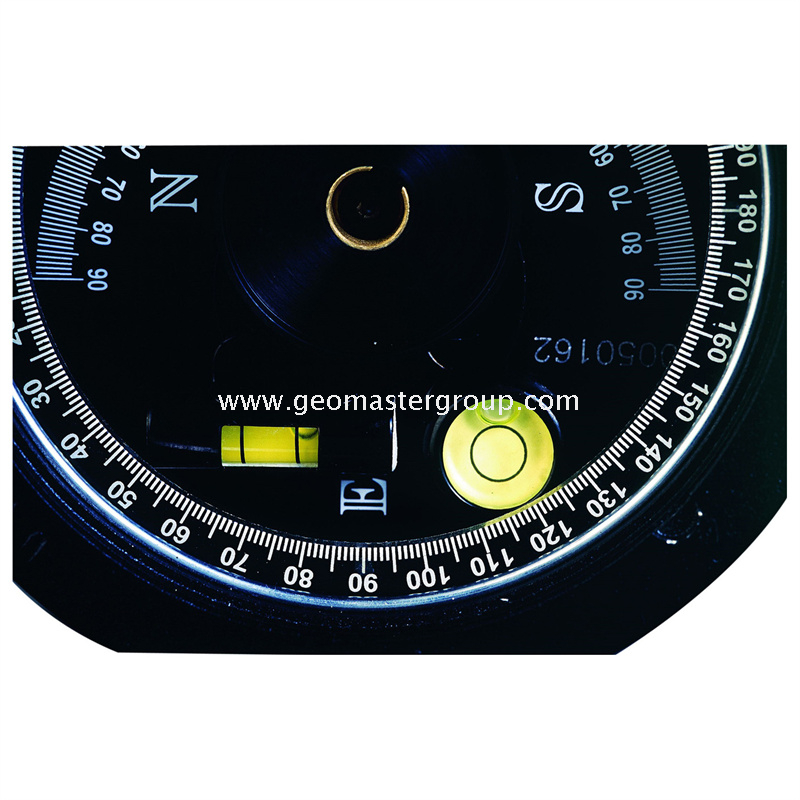

6.Levels (Bubbles)
Circular Level: 30'±5'/2mm; Plate Level: 20'±5'/2mm
7.Colors
Standard Color: Black; Army Green or Camouflage available
8.Material
Body Housing: Zinc Alloy; Outer Circle and Sighting Mirror: ABS
9.IP
Fully-sealed; water-proof, dust-proof and shock-proof
10.Ambient/Storage Temperature
-20℃~40℃ (normal-temperature storage suggested)
Note: Any updating would be subject to change without prior notice.
