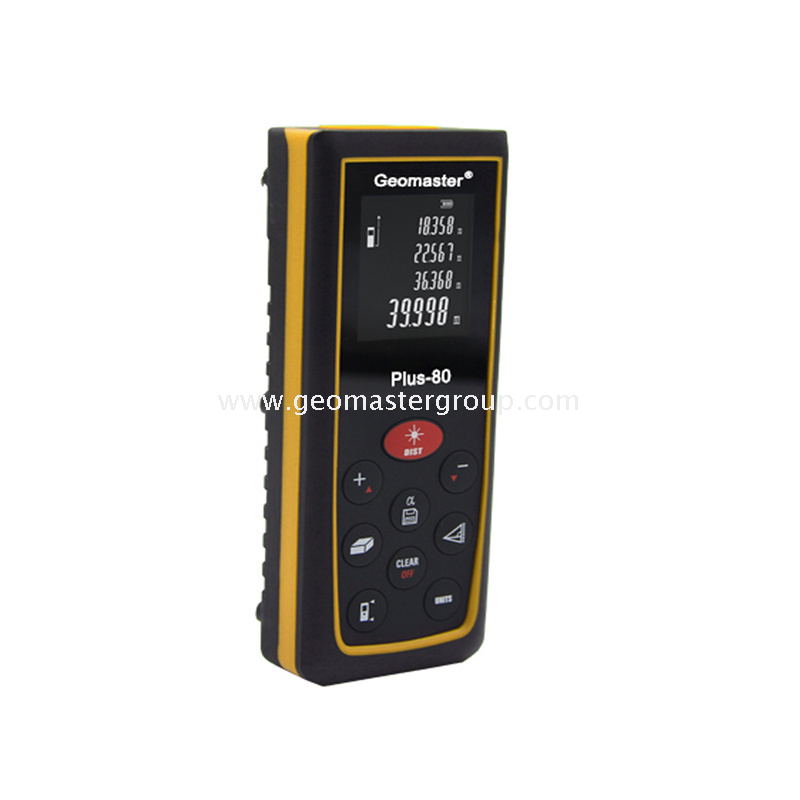

Laser Distance Meter

Highlights
Model: Plus-80
1.Hand-held Laser Distance Meter
2.Laser Measure up to 80m with ±2mm
3.Large-format & Back-lit LCD
4.Multiple Measuring Functions
5.Data Memory up to 50 Records
6.Water-proof and dust-proof IP54
7.Light-weight Tripod Female Thread 1/4"

Availability:
Quantity:
  • Plus-80
  • Geomaster
  • 9015900090

Features
Model: Plus-80
1.Distance measurement (0.05m up to 80m)
2.Area measurement
3.Volume measurement
4.Pythagorean measurement
5.Single measurement
6.Continuous measurement
7.Addition/Subtraction
8.Min/Max measurement
9.Angle Measurement
10.Measurement Reference: Front, Rear, Pin
11.with Tilting e-Sensor
12.Intelligent End-piece (Plus-80,Plus-100)
13.Beeping Warning
14.with Light-duty Camera Tripod Thread Hole 1/4"
15.Water-proof, dust-proof

Specifications
Model: Plus-80
1.Distance Measurement
1)Measuring Range (in door): 0.05-80m
2)Accuracy (in door): ±2.0mm
3)Minimum Reading: 1mm
4)Measuring Units: m/mm or ft/in
5)Measuring Time: 7 times per second


2.Data Display
1)Illuminated (back-light) LCD
2)Display Capacity: 4 Lines; Size: 1.44" (33mm´32mm)

3.Historical Data Memory
up to 50 Records

4.Laser Source
1)Laser Diode,Class II, 620-690nm, <1mw
2)Laser auto-off: after 30secs

5.Power Supply
1)Alkaline Battery: LR6 (AA), 2´1.5v
2)Battery Life: up to 5000 Measurements
3)Auto Power-off: after 180secs

6.Water-proof and Dust-proof
IP54

7.Ambient Temperature
1)Operating Temperature: 0°C ~40°C
2)Storage Temperature: 20°C ~70°C

8.Standard Outfit

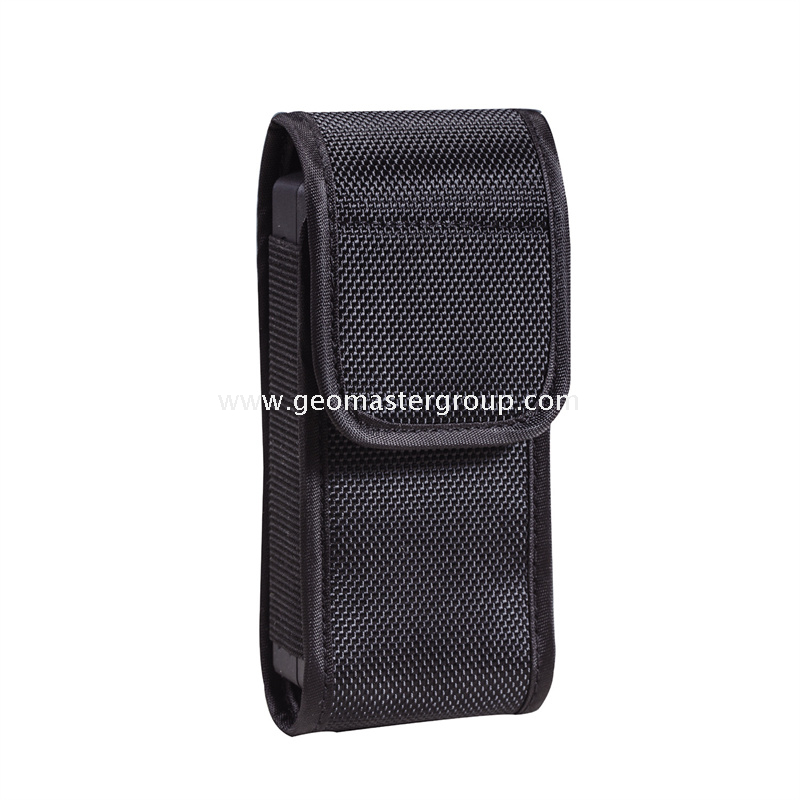

Main Unit, Alkaline Battery, EVA Holster, English-version User Manual

Note:
Any updating would be subject to change without prior notice.


Related Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool, Steel Measuring Tape,
Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape,Disto Laser, Disto Measure,
Distometer, Disto Tape, Disto Wheel,Distance Measuring Wheel, Digital Distance Wheel,Nylon-clad Tape, Steel Tape Measure,Stainless Steel Tape Measure, Distance Measure Laser, Laser Measuring Tool, Trumbull Distance Wheel,Roadrunner Measuring Wheel, Keson Distance Measuring Wheel,DigiRoller Measuring Wheel, Lufkin Measuring Wheel,Truemeter Measuring Wheel, Geomaster Measuring Wheel,Kickstand Measuring Wheel,Surveyor Tape,BMI Measure Tape,Nylon-coated Tape,PVC-coated Tape,PVC-clad Tape,Vertex Range Finder,Nikon Range Finder,Bushnell Range Finder,Golf Range Finder


Packing Details
Model: Plus-80
1.Dimensions: 128mm×49mm×28mm
2.N.W.: 105g (w/o.Battery)
3.Qty./CTN: 50pcs
4.G.W./CTN: 13kg
5.Size/CTN: 0.077cbm (65cm×34cm×35cm)
