Highlights
Model: DQL-7 (Style 62)
1.Worldwide Pocket Compass
2.Measuring Azimuth,Distance,Height,Slope...
3.For Positioning,Surveying,Mining,Marching.
4.Bead-sighting System
5.Outer Circle: 2º/360º
6.Inner Circle: 20/6000mils
7.Proportion:1:25000;1:50000;1:75000;1:100000
| Quantity: | |
|---|---|
DQL-7
Geomaster
90140000
Features and Specifications

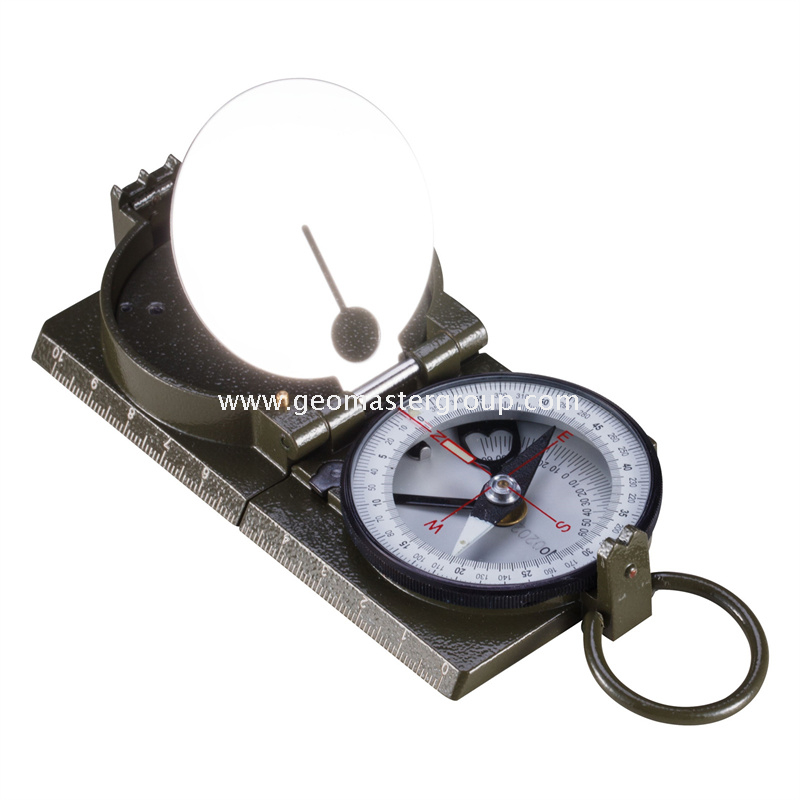

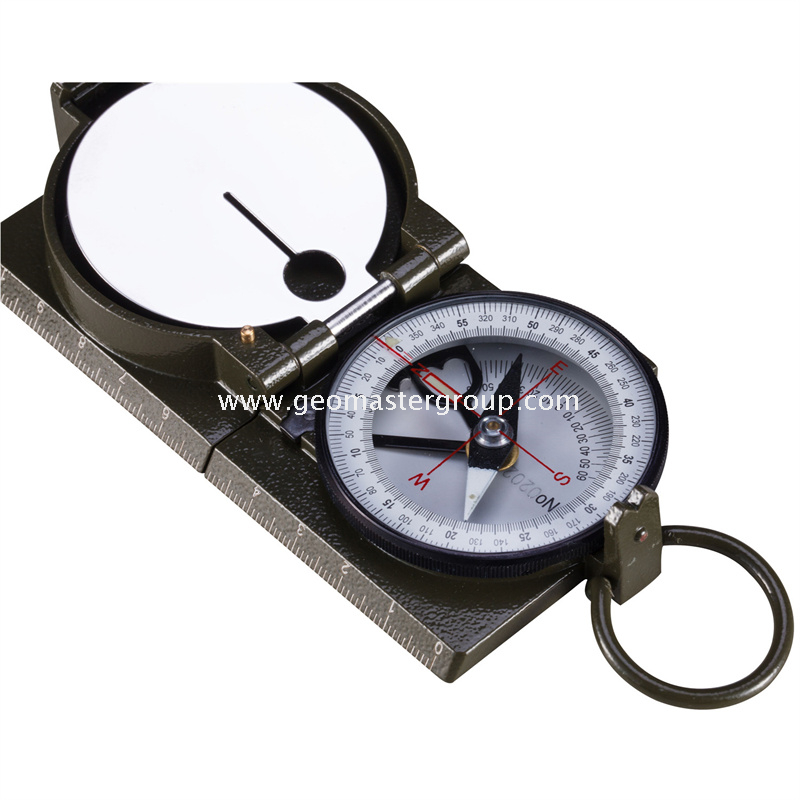

Model: DQL-7 (Style 62)
This pocket-size Compass is multi-purpose, mainly used for measuring Azimuth, Distance, Slope, Height, Time and Speed in marching.
1.Sighting System
Sight Bead
2.Outer Circle
Range: 360º; Min. Graduation: 2º; Accuracy: ±1º
3.Inner Circle
Range: 6000 mils; Min. Graduation: 20mils; Accuracy: ±10mils

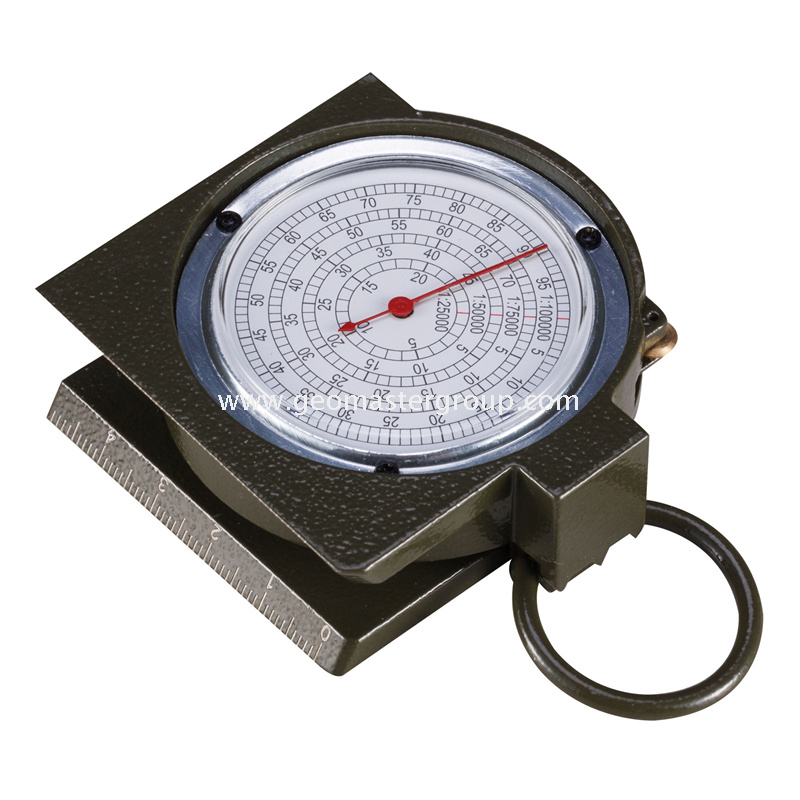

4.Clinometer
Angle of Elevation and Depression: ±60º; Accuracy: ≤1.25º
5.Mileage Proportion
1:25000;1:50000;1:75000;1:100000
6.Ambient Temperature
-20 ºC~+40 ºC
Note: Any updating would be subject to change without prior notice.
