Highlights
Model: DQL-16B
1.Precision Clinometer/Prismatic Compass
2.Replacement of Sunnto PM-5
3.Height and Slope Measuring
4.Optical Reading for higher Accuracy
5.Hand-held,Precision and Professional
6.w.Nylon Carrying Bag
Availability: | |
---|---|
Quantity: | |
DQL-16B
Geomaster
90140000
Features and Specifications
Model: DQL-16B
1)Equivalent to and replacement of hand-held Sunnto PM-5 (360PC Clinometer) with high accuracy when measuring heights, slopes and vertical angles all overall the world by Architects, Cartographers, Engineers, Foresters, Geologists, Miners,Surveyors,Antenna Installation Technicians and many others.
2)Easy to use and rugged enough to protect against impact, corrosion and water splash. This top-quality precision instrument combines precision accuracy with fast and easy one-hand operation!
1.Sighting System
1)Optical Reading (Lensatic/Prismatic) for more accurate reading
2)Liquid-filled for stable and efficient operation
2.Clinometer
1)In degree: ±90º; Min. Graduation: 5º
2)In percent: 0-150%; Min. Graduation: 1%
3)Estimated reading: ± ¼°
4)Diopter adjustable (Optical Adjustment)
3.Housing,Needles,Viewing Covers
1)Anodized aluminum Housing: heavy-duty and corrosion-resistant
2)Needle Cards: immersed in a clear, low-viscosity liquid damping for smooth, vibration-free movement.
3)Viewing Covers: Acrylic, anti-crash

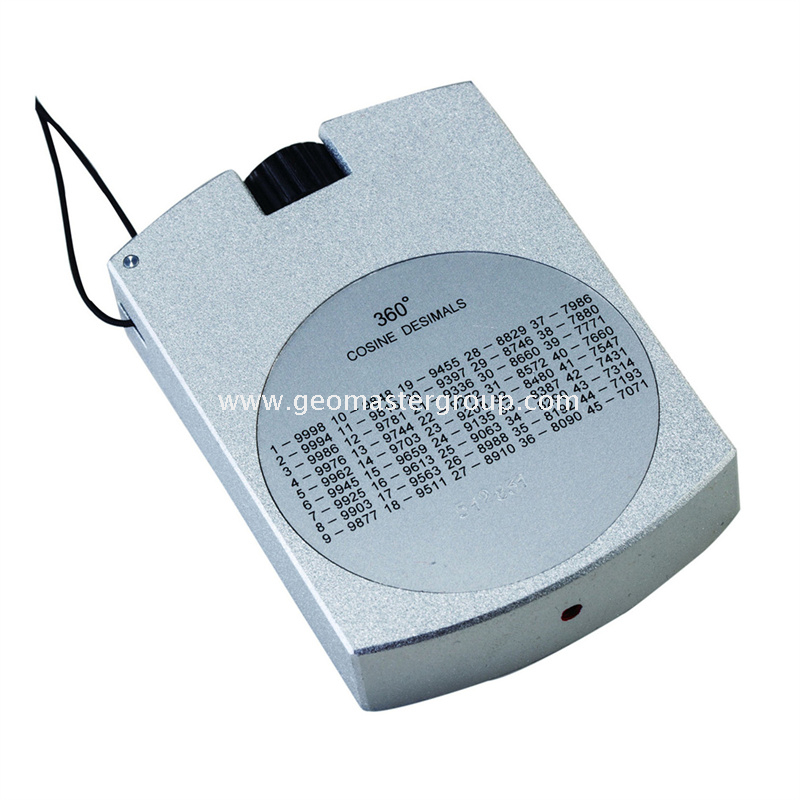

4)Cotangent Tables printed on the back
4.Color
Standard Color: Aluminum-powdered color; Black, Army Green or Camouflage available
5.IP
Fully-sealed; water-proof, dust-proof and shock-proof
6.Ambient/Storage Temperature
-20℃~40℃ (normal-temperature storage suggested)
7.Accessories
Lanyard, Nylon Pouch,Quick User Guide
Note: Any updating would be subject to change without prior notice.
Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying,Geospatial,SLAM Survey,
Geosystems,Multitrack Target,Forestry Compass, Surveyor Compass,Pocket Compass, Optical Compass, Prismatic Compass, Military Compass, Lensatic Compass, GEO Compass, Boussole, Rose
Compass, Nautical Compass, Luminous Compass,Transit Compass, Russian Compass,Army Compass, Tourism Compass, Surveying Compass,Mils Compass, Rukhs Compass, 6400-mils Compass,
6000-mils Compass, Clinometer Compass, e-Compass, Digital Compass,Theodolite Compass, Bearing Compass,Satellite Compass,Axis Pocket Transit,Axis 360 Compass (Artec,DJI,Autel,Cygnus,Holy
Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SECO, Sokkia, Stonex, Topcon, Trimble, Zeb, Sunnto,Silva,TruArc,Tritium, Commenga,Omnisight,Geomaster)
Features and Specifications
Model: DQL-16B
1)Equivalent to and replacement of hand-held Sunnto PM-5 (360PC Clinometer) with high accuracy when measuring heights, slopes and vertical angles all overall the world by Architects, Cartographers, Engineers, Foresters, Geologists, Miners,Surveyors,Antenna Installation Technicians and many others.
2)Easy to use and rugged enough to protect against impact, corrosion and water splash. This top-quality precision instrument combines precision accuracy with fast and easy one-hand operation!
1.Sighting System
1)Optical Reading (Lensatic/Prismatic) for more accurate reading
2)Liquid-filled for stable and efficient operation
2.Clinometer
1)In degree: ±90º; Min. Graduation: 5º
2)In percent: 0-150%; Min. Graduation: 1%
3)Estimated reading: ± ¼°
4)Diopter adjustable (Optical Adjustment)
3.Housing,Needles,Viewing Covers
1)Anodized aluminum Housing: heavy-duty and corrosion-resistant
2)Needle Cards: immersed in a clear, low-viscosity liquid damping for smooth, vibration-free movement.
3)Viewing Covers: Acrylic, anti-crash
4)Cotangent Tables printed on the back
4.Color
Standard Color: Aluminum-powdered color; Black, Army Green or Camouflage available
5.IP
Fully-sealed; water-proof, dust-proof and shock-proof
6.Ambient/Storage Temperature
-20℃~40℃ (normal-temperature storage suggested)
7.Accessories
Lanyard, Nylon Pouch,Quick User Guide
Note: Any updating would be subject to change without prior notice.
Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying,Geospatial,SLAM Survey,
Geosystems,Multitrack Target,Forestry Compass, Surveyor Compass,Pocket Compass, Optical Compass, Prismatic Compass, Military Compass, Lensatic Compass, GEO Compass, Boussole, Rose
Compass, Nautical Compass, Luminous Compass,Transit Compass, Russian Compass,Army Compass, Tourism Compass, Surveying Compass,Mils Compass, Rukhs Compass, 6400-mils Compass,
6000-mils Compass, Clinometer Compass, e-Compass, Digital Compass,Theodolite Compass, Bearing Compass,Satellite Compass,Axis Pocket Transit,Axis 360 Compass (Artec,DJI,Autel,Cygnus,Holy
Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SECO, Sokkia, Stonex, Topcon, Trimble, Zeb, Sunnto,Silva,TruArc,Tritium, Commenga,Omnisight,Geomaster)
Packing Details
Model: DQL-16B
1.Dimensions: 76mm×53mm×15mm
2.N.W.: 145-155g (with Soft Bag)
3.Qty./CTN: 50pcs
4.G.W./CTN: 7kg
5.Size/CTN: 0.04cbm (45cm ´35cm´25cm)
Packing Details
Model: DQL-16B
1.Dimensions: 76mm×53mm×15mm
2.N.W.: 145-155g (with Soft Bag)
3.Qty./CTN: 50pcs
4.G.W./CTN: 7kg
5.Size/CTN: 0.04cbm (45cm ´35cm´25cm)
